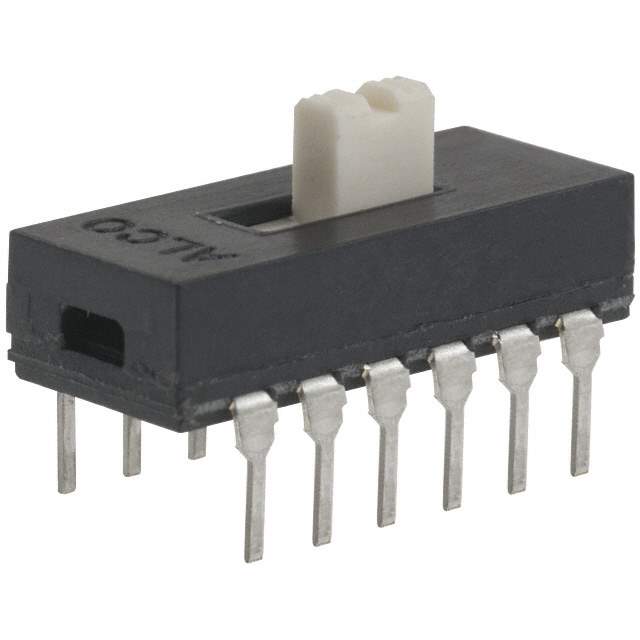

1-1825010-3 Real Image
Same model may have multiple batches, images only for reference.

1-1825010-3

Part No 1-1825010-3
Manufacturer TE Connectivity
Catalog Slide Switches
Description SWITCH SLIDE 4PDT 300MA 115V
Datasheet
1-1825010-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer TE Connectivity ALCOSWITCH Switches
Series ASE
Packaging Bulk
Circuit 4PDT
Contact Timing Shorting (MBB)
Switch Function On-On
Current Rating 300mA (AC)
Voltage Rating - AC 115V
Actuator Type Standard
Actuator Length 2.79mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Style Through Hole
Termination Style PC Pin
Actuator Material Polyamide (PA46), Nylon 4/6
Switch Travel 2.79mm
Operating Temperature Range -40°C ~ 80°C
Mechanical Life 15,000 Cycles
Electrical Life 15,000 Cycles
Operating Force 950gf
Win Source Part Number 760688-1-1825010-3
Popularity Medium
Supply and Demand Status Limited
Family Name 1825010
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin Mexico
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 1-1825010-3 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches 1825010-3 is an electronic component manufactured by.

  • Series: ASE
  • Packaging: Bulk
  • Termination Style: PC Pin
  • Mounting Style: Through-hole
  • Operating Temperature Range: -40°C to 80°C
  • Contact Finish: Silver
  • Contact Material: Copper Alloy
  • Current Rating: 300mA (AC)
  • Actuator Material: Polyamide (PA46), Nylon 4/6
  • Voltage Rating - AC: 115V
  • Circuit: 4PDT
  • Contact Timing: Shorting (MBB)
  • Switch Function: On-On
  • Actuator Type: Standard
  • Actuator Length: 2.79mm
  • Switch Travel: 2.79mm
  • Electrical Life: 15,000 cycles
  • Mechanical Life: 15,000 cycles
  • Supply and Demand Status: Limited
