Same model may have multiple batches, images only for reference.

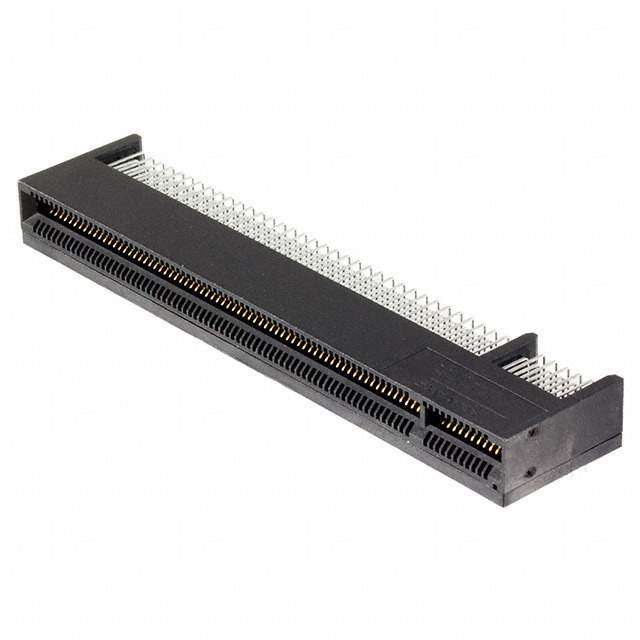

1-1761465-4 Real Image
Same model may have multiple batches, images only for reference.

1-1761465-4

Part No 1-1761465-4
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP FMALE 164POS 0.039 / 164 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors>Edgeboard Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Card Type PCI Express™
Gender Female
Number of Positions 164
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.039" (1.00mm)
Read Out Dual
Features Board Guide
Mounting Through Hole, Right Angle
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Temperature Range - Operating -40°C ~ 85°C
Material - Insulation Thermoplastic
Base Product Number 1761465
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -1-1761465-4-SI,A108953
Standard Package 500
Win Source Part Number 1334060-1-1761465-4
Ultra Librarian 3D Model Ultra Librarian 1-1761465-4 CAD Model

Description

This TE Connectivity AMP Connector is a black edgeboard connector with 164 positions and a pitch of 0.039 inches.

  • Rows: Two
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Material: Copper alloy
  • Insulation Material: Thermoplastic
  • Mounting: Through hole and right angle
  • Package: 500
  • Card Type: PCI Express™
  • Read Out: Dual
  • Operating Temperature Range: -40°C to 85°C
  • ROHS3 Compliant: Yes
