Same model may have multiple batches, images only for reference.

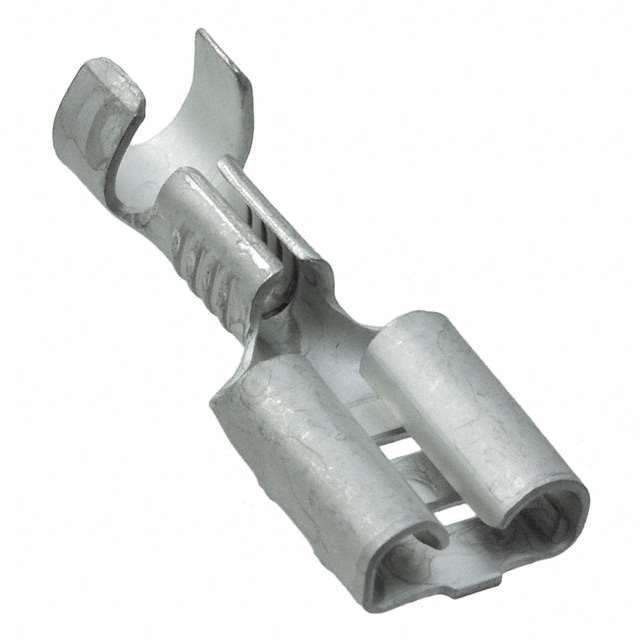

1-160304-2 Real Image
Same model may have multiple batches, images only for reference.

1-160304-2

Part No 1-160304-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 13.5-17AWG 0.250 / 0.250" (6.35mm) Quick Connect Female 13.5-17 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.303" (7.70mm)
Length - Overall 0.795" (20.19mm)
Termination Crimp
Wire Gauge 13.5-17 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.118" ~ 0.169" (3.00mm ~ 4.29mm)
Base Product Number 160304
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A106546,-1-160304-2-SI,-D89496-000-SI,-D89496-000-LSI,2266-1-160304-2,11603042,1-160304-2-ND,-D89496-000-SI-ND
Standard Package 500
Win Source Part Number 1333672-1-160304-2
Ultra Librarian 3D Model Ultra Librarian 1-160304-2 CAD Model

Description

The TE Connectivity AMP Connectors 1333672-1-160304-2 is a female quick disconnect connector with a crimp termination and a contact finish of tin.

  • Wire Gauge: 13.5-17 AWG
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Overall Length: 0.795" (20.19mm)
  • Insulation Diameter: 0.118" ~ 0.169" (3.00mm ~ 4.29mm)
  • Insulation: Non-Insulated
  • Shell Size: 63
  • Mounting: Free Hanging (In-Line)
  • Packaging: Bulk
