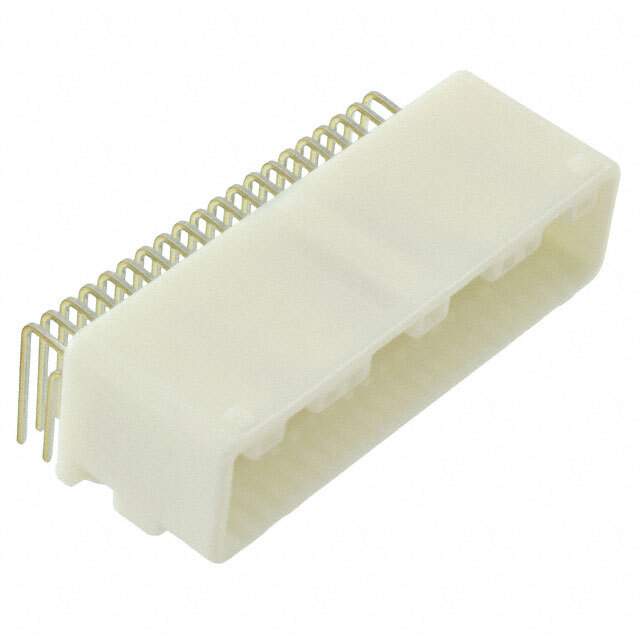

1-1318384-3 Real Image
Same model may have multiple batches, images only for reference.

1-1318384-3

Part No 1-1318384-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 40POS 2.2MM / Connector Header Through Hole, Right Angle 40 position 0.087" (2.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.087" (2.20mm)
Number of Positions 40
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.217" (5.50mm)
Contact Length - Post 0.157" (4.00mm)
Insulation Height 0.610" (15.49mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Features Mounting Flange
Temperature Range - Operating -30°C ~ 105°C
Insulation Color Natural
Voltage Rating 12VDC
Applications Automotive
Base Product Number 1318384
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2266-1-1318384-3
Standard Package 315
Win Source Part Number 1334150-1-1318384-3
Ultra Librarian 3D Model Ultra Librarian 1-1318384-3 CAD Model

Description

This TE Connectivity AMP Connectors header is a male pin connector with 40 positions and 2 rows.

  • Pitch: 0.087 inches (2.20mm)
  • Termination: Solder
  • Contact Finish: Tin
  • Insulation Material: Syndiotactic polystyrene (SPS), glass filled
  • Voltage Rating: 12VDC
  • Temperature Range: -30°C to 105°C
  • Mounting: Through hole, right angle
  • Mated Stacking Height: -
