Same model may have multiple batches, images only for reference.

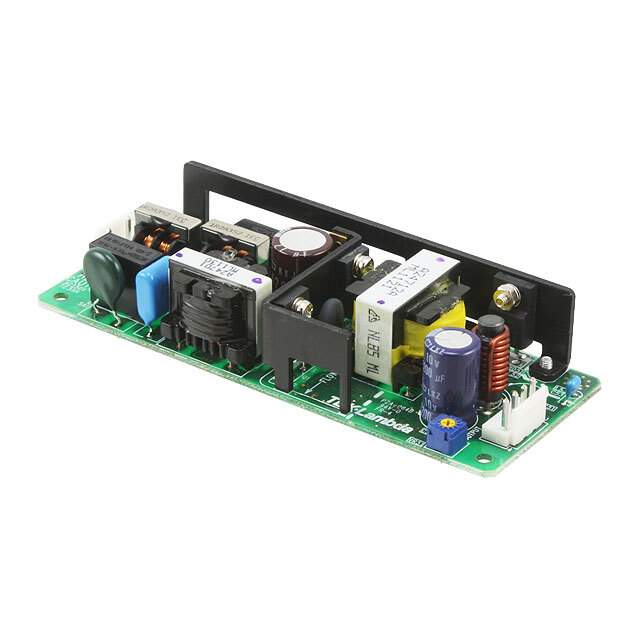

ZWS50BAF-24 Real Image
Same model may have multiple batches, images only for reference.

ZWS50BAF-24

Part No ZWS50BAF-24
Manufacturer TDK-Lambda Americas Inc.
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 24V 50W / Open Frame AC DC Converters 1 Output 24V 85 ~ 265 VAC Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr TDK-Lambda Americas Inc
Series ZWS50BAF (50W)
Package Bulk
Type Open Frame
Number of Outputs 1
Voltage - Input 85 ~ 265 VAC
Voltage - Output 1 24V
Current - Output 1 2.1 A
Power (Watts) 50W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 88%
Temperature Range - Operating -10°C ~ 70°C (With Derating)
Features Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input
Mounting Type Chassis Mount
Size / Dimension 5.20" L x 1.97" W x 1.02" H (132.0mm x 50.0mm x 26.0mm)
Approval Agency CE
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.6018
California Prop 65 Warning Information
Win Source Part Number 1349861-ZWS50BAF-24
Ultra Librarian 3D Model Ultra Librarian ZWS50BAF-24 CAD Model

Description

The ZWS50BAF-24 is an electronic component manufactured by TDK-Lambda Americas Inc. The product is designed to be used in ITE (commercial) applications and has a power output of 50 watts. ZWS50BAF-24 manufactured by TDK-Lambda Americas Inc.

  • Application: ITE (Commercial)
  • Power Output: 50 Watts
  • Features: Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input
  • Voltage Input: 85 ~ 265 VAC
  • Isolation Voltage: 3 kV
  • Output Voltage: 24V (Single Output)
  • Efficiency: 88%
  • Mounting Type: Chassis Mount
  • Operating Temperature: -10°C ~ 70°C (with derating)
