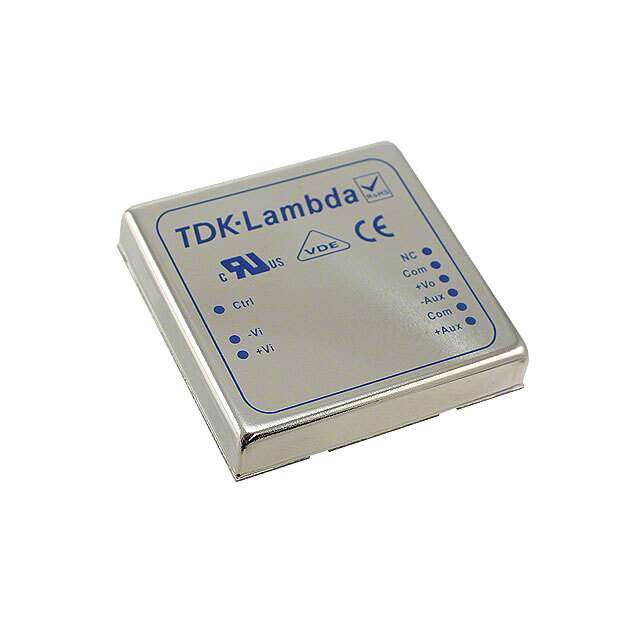

PAH100S48-24/V

Get a Quote

Part No	PAH100S48-24/V
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 24V 100W / Isolated Module DC DC Converter 1 Output 24V 4.2A 36V - 76V Input
Datasheet	PAH100S48-24/V Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc
Series	PAH (100W)
Package	Bulk
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	76V
Voltage - Output 1	24V
Current - Output (Max)	4.2A
Power (Watts)	100 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	88%
Mounting Type	Through Hole
Package / Case	9-DIP Module
Size / Dimension	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Control Features	Enable, Active Low
Standard Package	1
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1348544-PAH100S48-24/V
Ultra Librarian 3D Model	Ultra Librarian PAH100S48-24/V CAD Model

Alternative Products

Description

The TDK-Lambda Americas Inc PAH (100W) series is an isolated DC-DC converter module that has a power output of 100 W.

Voltage Input: 36V to 76V
Voltage Output: 24V
Features: Remote On/Off, OCP, OTP, and OVP
Efficiency: 88%
Operating Temperature: -40°C to 100°C
Package Size: 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Package: 9-DIP module
Application: ITE (Commercial)
