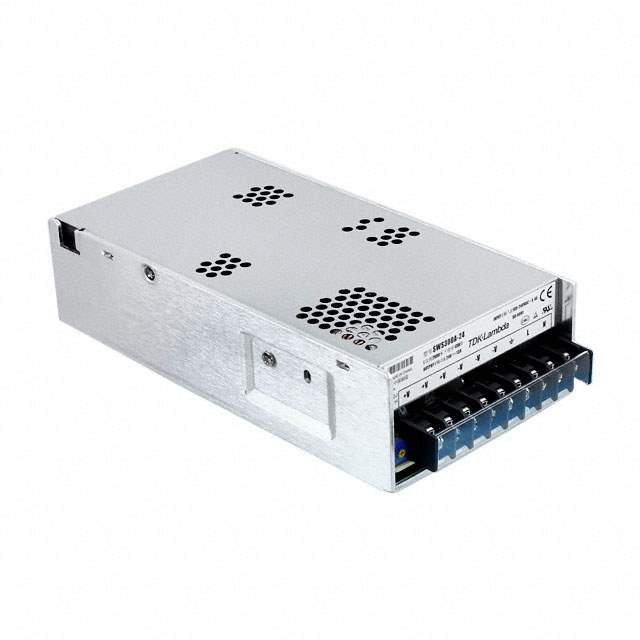

SWS300A-7R5 Real Image1 SWS300A-7R5 Real Image2
Same model may have multiple batches, images only for reference.
SWS300A-7R5 Real Image1 SWS300A-7R5 Real Image2
SWS300A-7R5 Real Image1 SWS300A-7R5 Real Image2
Same model may have multiple batches, images only for reference.

SWS300A-7R5

Part No SWS300A-7R5
Manufacturer TDK-Lambda Americas Inc.
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 7.5V 300W / Enclosed AC DC Converters 1 Output 7.5V 85 ~ 265 VAC Input
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr TDK-Lambda Americas Inc.
Series SWS300A (300W)
Package Bulk
Product Status Obsolete
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 265 VAC
Voltage - Output 1 7.5V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Voltage - Output 6 -
Current - Output 1 40 A
Power (Watts) 300W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 80%
Temperature Range - Operating -20°C ~ 74°C (With Derating)
Features Adjustable Output, PFC, Universal Input
Mounting Type Chassis Mount
Size / Dimension 7.80" L x 2.05" W x 4.01" H (198.1mm x 52.1mm x 101.9mm)
Approval Agency CE, cURus, TUV
Minimum Load Required -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9530
Standard Package 1 pcs
Win Source Part Number 1383561-SWS300A-7R5
Ultra Librarian 3D Model Ultra Librarian SWS300A-7R5 CAD Model

Description

The SWS300A-7R5 is an enclosed AC-DC converter designed for external power supply applications.

  • Power Output: 300W
  • Features: Adjustable output voltage, power factor correction (PFC), and universal input voltage compatibility
  • Manufacturer: TDK-Lambda Americas Inc.
  • Mounting Type: Chassis mounting
  • Package: Bulk
  • Size: 7.80" L x 2.05" W x 4.01" H
  • Input Voltage Range: 85V to 265V AC
  • Isolation Voltage: 3kV
  • Efficiency: 80%
  • ECCN: Yes
  • Moisture Sensitivity Level: 1
  • Status: Obsolete
