Same model may have multiple batches, images only for reference.

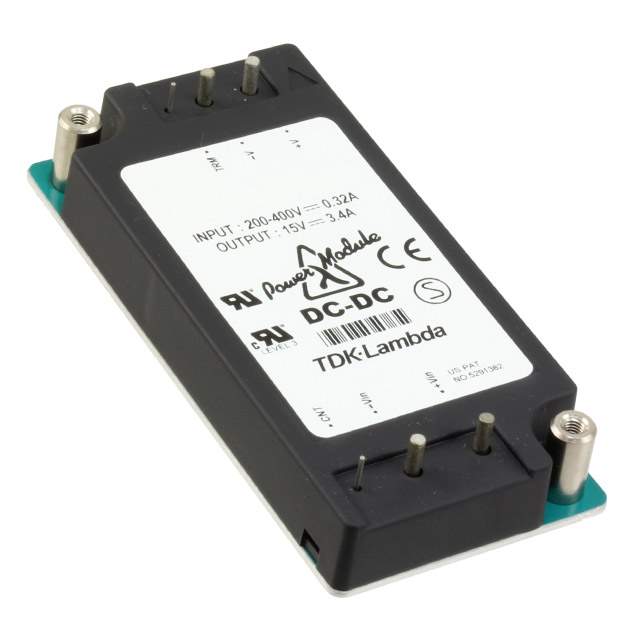

PH50S48-15 Real Image
Same model may have multiple batches, images only for reference.

PH50S48-15

Part No PH50S48-15
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONVERT DC-DC 15V 50W 3.4A / Module DC-DC 48VIN 1-OUT 15V 3.4A 50W 6-Pin
Datasheet
PH50S48-15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer TDK-Lambda Americas Inc.
Series PH-S
Packaging Bulk
Part Status Obsolete(EOL)
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 36V
Voltage Input MAX 76V
Voltage - Output 1 15V
Current - Output (Maximum) 3.4A
Power (Watts) 50W
Voltage - Isolation 3kV (3000V)
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP
Operating Temperature Range -20°C ~ 85°C
Mounting Style Through Hole
Package Module
Dimension 3.85" L x 1.61" W x 0.50" H (86.0mm x 41.0mm x 12.7mm)
Win Source Part Number 791756-PH50S48-15
Popularity Medium
Supply and Demand Status Limited
Family Name PH50S48-15
Introduction Date December 01, 2005
ECCN EAR99
Country of Origin Japan, Malaysia
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PH50S48-15 CAD Model

Description

The TDK-Lambda Americas Inc. PH50S48-15 is an isolated module that is designed for ITE (Commercial) applications. It features a remote On/Off, OCP, OTP, OVP, and has a power output of 50W.

  • Power: 50W
  • Features: Remote On/Off, OCP, OTP, OVP
  • Voltage Isolation: 3kV (3000V)
  • Output Voltage: 15V
  • Mounting Style: Through Hole
  • Temperature Range: -20°C to 85°C
  • Dimensions: 3.85" L x 1.61" W x 0.50" H (86.0mm x 41.0mm x 12.7mm)
  • Input Voltage: 36V to 76V
  • Output Current: 3.4A
  • Manufacturer: Japan, Malaysia
  • Status: Obsolete (EOL)
  • Alternative Parts: Cross-references
  • Applications: ITE (Commercial)
