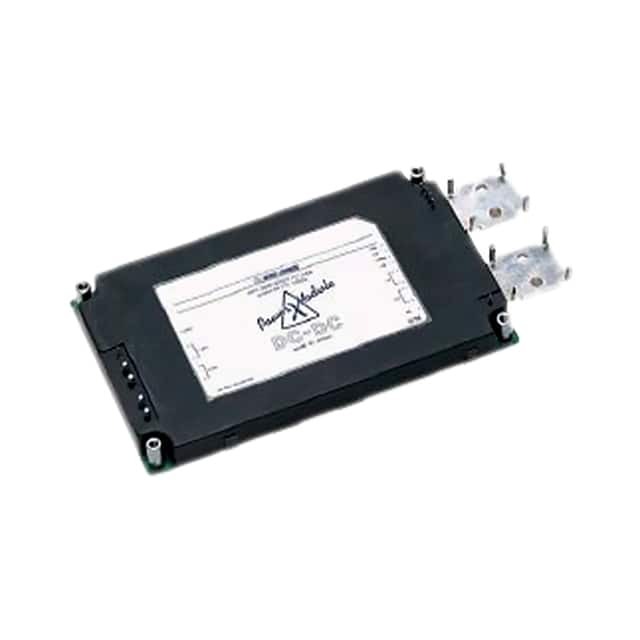

Same model may have multiple batches, images only for reference.

PH300S280-15

Get a Quote

Part No	PH300S280-15
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V 300W / Isolated Module DC DC Converter 1 Output 15V 20A 200V - 400V Input
Datasheet	PH300S280-15 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc.
Series	PH-S (300W)
Package	Bulk
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	200V
Voltage - Input (Max)	400V
Voltage - Output 1	15V
Current - Output (Max)	20A
Power (Watts)	300 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP
Temperature Range - Operating	-20°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Module
Size / Dimension	3.85" L x 1.61" W x 0.50" H (86.0mm x 41.0mm x 12.7mm)
Control Features	Enable, Active Low
Standard Package	1 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	930337-PH300S280-15
Ultra Librarian 3D Model	Ultra Librarian PH300S280-15 CAD Model

Alternative Products

Description

The PH300S280-15 is a power supply module from TDK-Lambda Americas Inc.

Series: PH-S (300W) series
Category: Board mount DC-DC converters
Type: Isolated module
Applications: ITE (Commercial) applications
Power Output: 300W
Features: Remote On/Off, OCP (Over Current Protection), OTP (Over Temperature Protection), and OVP (Over Voltage Protection)
Package: Bulk
Dimensions: 3.85" L x 1.61" W x 0.50" H (86.0mm x 41.0mm x 12.7mm)
Input Voltage Range: 200V to 400V
Output Voltage: 15V
Mounting: Through hole
Temperature Range: -20°C to 85°C
