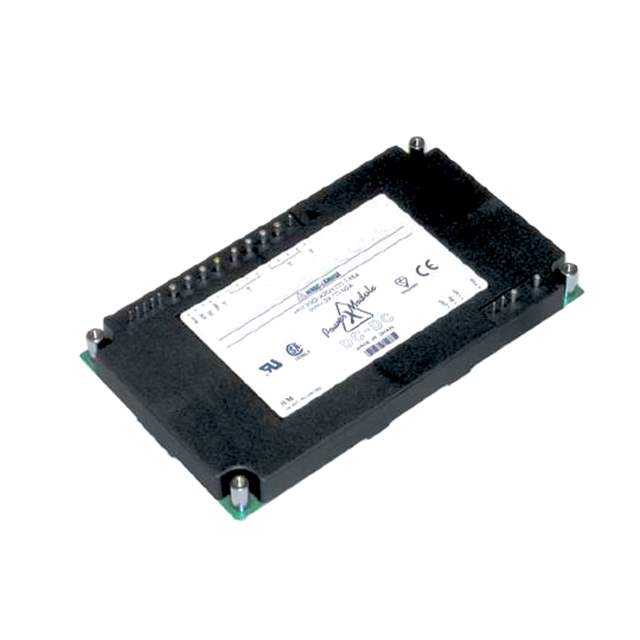

Same model may have multiple batches, images only for reference.

PH150S48-5

Name: PH150S48-5
Brand: TDK-Lambda Americas Inc.
SKU: 791749
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PH150S48-5
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	CONVERT DC-DC 5V 150W 30A / Module DC-DC 48VIN 1-OUT 5V 30A 150W 10-Pin
Datasheet	PH150S48-5 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Power Supplies - Board Mount
Manufacturer	TDK-Lambda Americas Inc.
Series	PH-S
Packaging	Bulk
Part Status	Obsolete(EOL)
Type	Isolated Module
Number of Outputs	1
Input Voltage MIN	36V
Voltage Input MAX	76V
Voltage - Output 1	5V
Current - Output (Maximum)	30A
Power (Watts)	150W
Voltage - Isolation	3kV (3000V)
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP
Operating Temperature Range	-20°C ~ 85°C
Mounting Style	Through Hole
Package	Module
Dimension	3.85" L x 1.61" W x 0.50" H (86.0mm x 41.0mm x 12.7mm)
Win Source Part Number	791749-PH150S48-5
Popularity	Medium
Supply and Demand Status	Limited
Family Name	PH150S48-5
Introduction Date	December 01, 2005
ECCN	EAR99
Country of Origin	Japan, Malaysia
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian PH150S48-5 CAD Model

Alternative Products

Description

The PH150S48-5 from TDK-Lambda Americas Inc. is an isolated module type power supply that is designed to deliver high performance. It features a remote on/off, OCP, OTP, and OVP features and has a power output of 150W.

Power: 150W
Features: Remote On/Off, OCP, OTP, OVP
Voltage Isolation: 3kV (3000V)
Input Voltage: 36V to 76V
Supply and Demand Status: Limited
