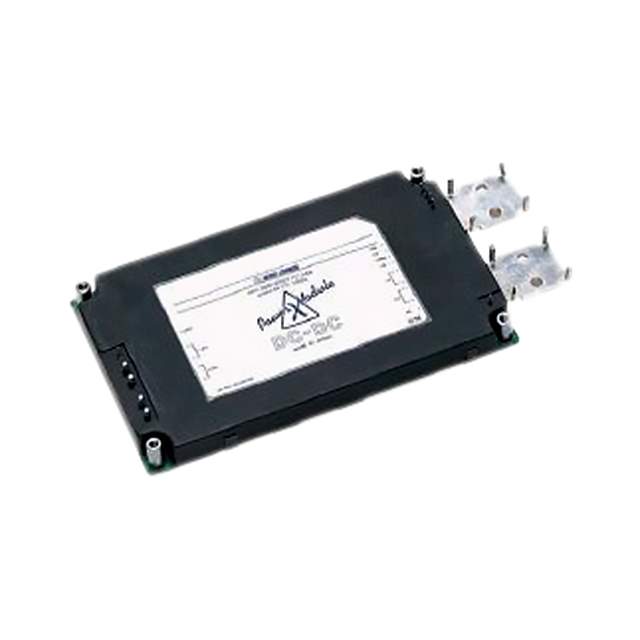

Same model may have multiple batches, images only for reference.

PH100S48-12

Name: PH100S48-12
Brand: TDK-Lambda Americas Inc.
SKU: 791747
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PH100S48-12
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	CONVERT DC-DC 12V 100W 8.4A / Module DC-DC 48VIN 1-OUT 12V 8.4A 100W 8-Pin
Datasheet	PH100S48-12 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Power Supplies - Board Mount
Manufacturer	TDK-Lambda Americas Inc.
Series	PH-S
Packaging	Bulk
Part Status	Obsolete(EOL)
Type	Isolated Module
Number of Outputs	1
Input Voltage MIN	36V
Voltage Input MAX	76V
Voltage - Output 1	12V
Current - Output (Maximum)	8.4A
Power (Watts)	100W
Voltage - Isolation	3kV (3000V)
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP
Operating Temperature Range	-20°C ~ 85°C
Mounting Style	Through Hole
Package	Module
Dimension	3.85" L x 1.61" W x 0.50" H (86.0mm x 41.0mm x 12.7mm)
Win Source Part Number	791747-PH100S48-12
Popularity	Medium
Supply and Demand Status	Limited
Family Name	PH100S48-12
Introduction Date	December 01, 2005
ECCN	EAR99
Country of Origin	Japan, Malaysia
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian PH100S48-12 CAD Model

Alternative Products

Description

The TDK-Lambda Americas Inc. PH100S48-12 is an isolated module with a power of 100W. It has an input voltage range of 36V to 76V and an output voltage of 12V.

Power: 100W
Input Voltage: 36V to 76V
Output Voltage: 12V
Voltage Isolation: 3kV
Package: Module
Mounting Style: Through Hole
Temperature Range: -20°C to 85°C
Features: Remote On/Off, OCP, OTP, OVP
Applications: ITE (Commercial)
Status: Obsolete (EOL)
Supply and Demand Status: Limited
