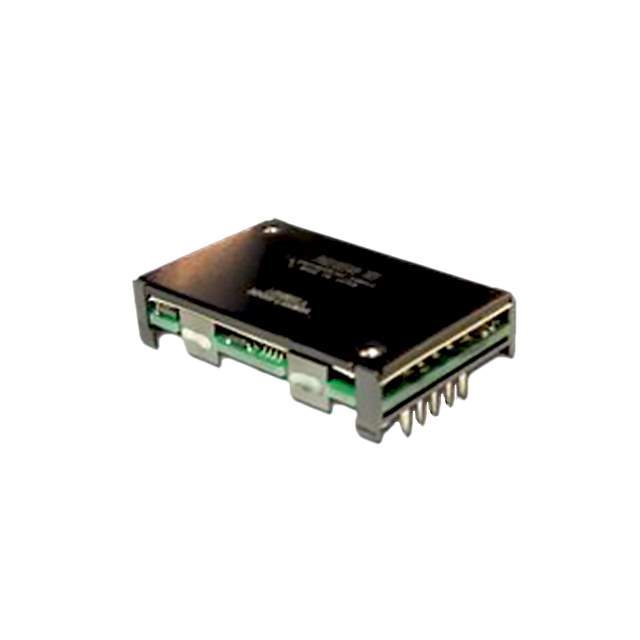

Same model may have multiple batches, images only for reference.

PAQ100S48-2R5/BPV

Get a Quote

Part No	PAQ100S48-2R5/BPV
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 2.5V 63W / Isolated Module DC DC Converter 1 Output 2.5V 25A 36V - 76V Input
Datasheet	PAQ100S48-2R5/BPV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	TDK-Lambda Americas Inc
Series	PAQ100
Package	Bulk
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	76V
Voltage - Output 1	2.5V
Current - Output (Max)	25A
Power (Watts)	63 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	86%
Mounting Type	Through Hole
Package / Case	8-DIP Module, 1/4 Brick
Dimension	2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm)
Control Features	Enable, Active High
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	PAQ100S482R5/BPV-ND,PAQ100S482R5/BPV,PAQ100S48-2R5/BPV,285-PAQ100S48-2R5/BPV
Standard Package	1
Win Source Part Number	1083897-PAQ100S48-2R5/BPV
Ultra Librarian 3D Model	Ultra Librarian PAQ100S48-2R5/BPV CAD Model

Alternative Products

Description

The TDK-Lambda Americas Inc PAQ100S482R5/BPV is an isolated module type DC-DC converter.

Power Rating: 63W
Efficiency: 86%
Features: Remote On/Off, OCP, and OVP
Voltage Isolation: 1.5kV
Current Output: 25A
Input Voltage: 36V to 76V
Output Voltage: 2.5V
Mounting Type: Through Hole
Package/Case: 8-DIP Module, 1/4 Brick
Operating Temperature: -40°C to 100°C
Status: Obsolete
Alternative Parts: PAH75S48-2.5/V, PAE100S48-3R3/V, ALD25K48-SL, ALD18F48-SL, ALD18F48N-SL, and PAQ50S48-5/VPAQ100S482R5/BPV
