Same model may have multiple batches, images only for reference.

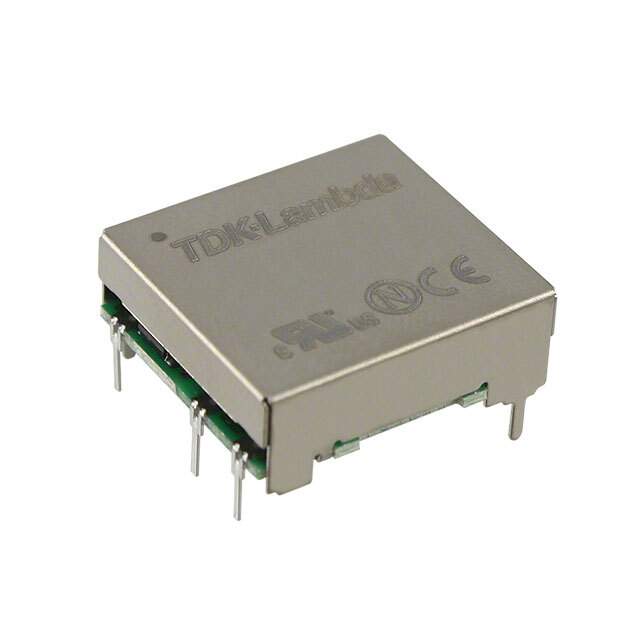

CC6-2412DF-E Real Image
Same model may have multiple batches, images only for reference.

CC6-2412DF-E

Part No CC6-2412DF-E
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CNVRTR +/-12V TO +/-15V 6W / Isolated Module DC DC Converter 2 Output 12 ~ 15V -12 ~ -15V 250mA, 250mA 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr TDK-Lambda Americas Inc
Series CC-E (6W)
Package Tray
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12 ~ 15V
Voltage - Output 2 -12 ~ -15V
Current - Output (Max) 250mA, 250mA
Power (Watts) 6 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 7-DIP Module
Dimension 0.90" L x 0.83" W x 0.34" H (22.9mm x 21.1mm x 8.5mm)
Control Features Enable, Active Low
Base Product Number CC6-2412
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 445-2492,CC62412DFE
Standard Package 10
Win Source Part Number 1051442-CC6-2412DF-E
Ultra Librarian 3D Model Ultra Librarian CC6-2412DF-E CAD Model

Description

The TDK-Lambda Americas Inc CC6-2412DF-E is an isolated module DC-DC converter with a power output of 6W.

  • Supply and Demand Status: balance
  • Outputs: two outputs
  • Current Output: 250mA each
  • Input Voltage Range: 18V to 36V
  • Mounting Type: through-hole device
  • Package: 7-DIP module package
  • Application: ITE (Commercial) equipment
