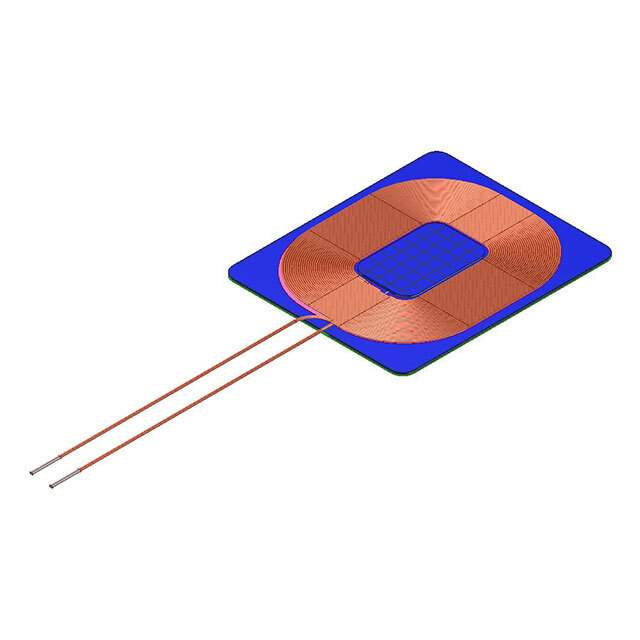

WR383245-17F5-G Real Image
Same model may have multiple batches, images only for reference.

WR383245-17F5-G

Part No WR383245-17F5-G
Manufacturer TDK Corporation
Catalog Wireless Charging Coils
Description RX 1 COIL, 1 LYR 13.9UH / 1 Coil, 1 Layer 13.9µH Wireless Charging Coil Receiver 310mOhm
Datasheet
WR383245-17F5-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Wireless Charging Coils
Mfr TDK Corporation
Series WR
Package Tray
Function Receiver
Type 1 Coil, 1 Layer
Inductance 13.9µH
DC Resistance (DCR) 310mOhm
Q @ Freq 28 @ 100kHz
Dimension 1.51" L x 1.27" W x 0.03" H (38.4mm x 32.3mm x 0.9mm)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 445-175293
Standard Package 24
Win Source Part Number 1104794-WR383245-17F5-G
Ultra Librarian 3D Model Ultra Librarian WR383245-17F5-G CAD Model

Description

The 1104794-WR383245-17F5-G is a wireless charging coil manufactured by TDK Corporation.

  • Type: 1 coil, 1 layer
  • Packaging: Tray
  • Inductance: 13.9µH
  • DC Resistance (DCR): 310mOhm
  • Standard Package: 24
  • Q @ Freq: 28 @ 100kHz
  • Dimension: 1.51" L x 1.27" W x 0.03" H (38.4mm x 32.3mm x 0.9mm)
  • ECCN: EAR99
  • HTSUS Code: 8504.50.8000
