Same model may have multiple batches, images only for reference.

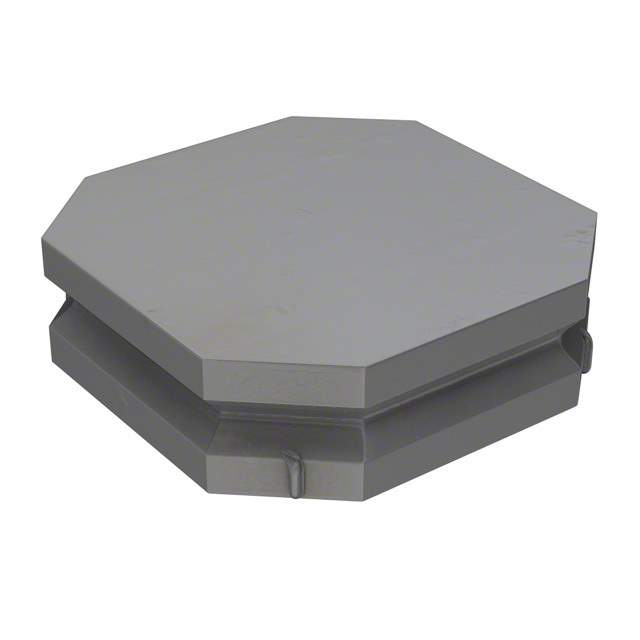

VLS4012T-2R2M1R4 Real Image
Same model may have multiple batches, images only for reference.

VLS4012T-2R2M1R4

Part No VLS4012T-2R2M1R4
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Inductor Power Shielded Wirewound 2.2uH 20% 1MHz 1.4A 0.084Ohm DCR 1515 T/R / FIXED IND 2.2UH 1.4A 84 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Wirewound
Inductance 2.2μH
Tolerance ±20%
Current Rating 1.4A
Current - Saturation 1.7A
DC Resistance (DCR) 84 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 054541-VLS4012T-2R2M1R4
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name VLS
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian VLS4012T-2R2M1R4 CAD Model

Description

The TDK Corporation wirewound inductor is a high-quality electronic component with a current rating of 1.4A and an inductance of 2.2μH.

  • Height: 0.047 inches
  • Mounting Type: SMD (SMT)
  • Tolerance: ±20%
  • Current Saturation: 1.7A
  • Popularity: high
  • Suitable for: circuits that require a balanced supply and demand status
