Same model may have multiple batches, images only for reference.

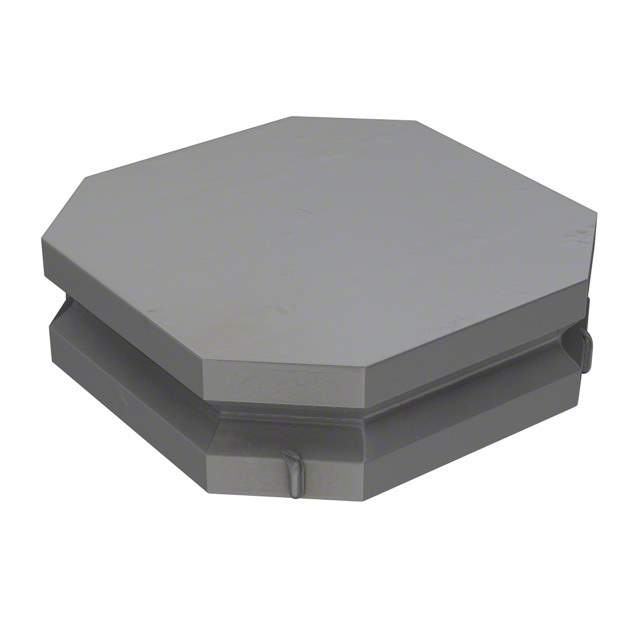

VLS4012T-220MR57 Real Image
Same model may have multiple batches, images only for reference.

VLS4012T-220MR57

Part No VLS4012T-220MR57
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 570MA 492 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Wirewound
Inductance 22μH
Tolerance ±20%
Current Rating 570mA
Current - Saturation 630mA
DC Resistance (DCR) 492 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 1117291-VLS4012T-220MR57
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLS4012T-220MR57 CAD Model

Description

The VLS4012T-220MR57 is a wirewound type inductor manufactured by TDK Corporation.

  • Mounting Type: Surface-mount device
  • Popularity: Medium
  • Inductance: 22μH
  • Current Rating: 570mA
  • Temperature Range: -40°C to 105°C
  • Lifecycle Status: Not recommended for new designs
  • Case/Package: None
  • Win Source Part Number: 1117291-VLS4012T-220MR57
