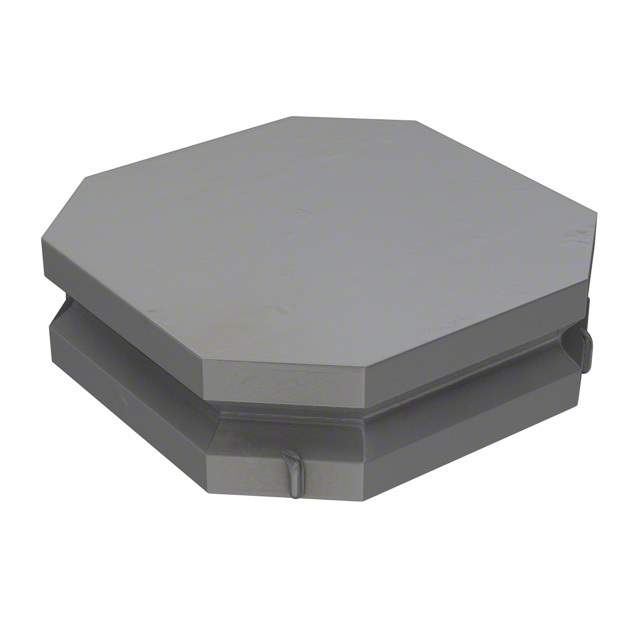

Same model may have multiple batches, images only for reference.

VLS4012ET-2R2M

Name: VLS4012ET-2R2M
Brand: TDK Corporation
SKU: 398659
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	VLS4012ET-2R2M
Manufacturer	TDK Corporation
Catalog	Fixed Inductors
Description	Inductor Power Shielded Wirewound 2.2uH 20% 1MHz Ferrite 2.2A 0.081Ohm DCR 1515 T/R / FIXED IND 2.2UH 1.7A 81 MOHM SMD
Datasheet	VLS4012ET-2R2M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	TDK Corporation
Packaging	Reel - TR
Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	2.2μH
Tolerance	±20%
Current Rating	1.7A
Current - Saturation	1.7A
DC Resistance (DCR)	81 mOhm Max
Temperature Range - Operating	-40°C to 105°C
Frequency - Test	1MHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.047" (1.20mm)
Win Source Part Number	036408-VLS4012ET-2R2M
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Quantity per package	1k pcs
Family Name	VLS-E
Introduction Date	May 20, 2002
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2022
Ultra Librarian 3D Model	Ultra Librarian VLS4012ET-2R2M CAD Model

Alternative Products

Description

The 036408-VLS4012ET-2R2M is a wirewound type inductor manufactured by TDK Corporation.

Current Rating: 1.7A
Inductance: 2.2μH
Height: 0.047" (1.20mm)
Mounting: SMD (SMT)
Tolerance: ±20%
Core Material: Ferrite
Saturation Current: 1.7A
DC Resistance (DCR): 81 mOhm Max
Temperature Range: -40°C to 105°C
Package Type: Reel - TR
Quantity: 1k pcs
