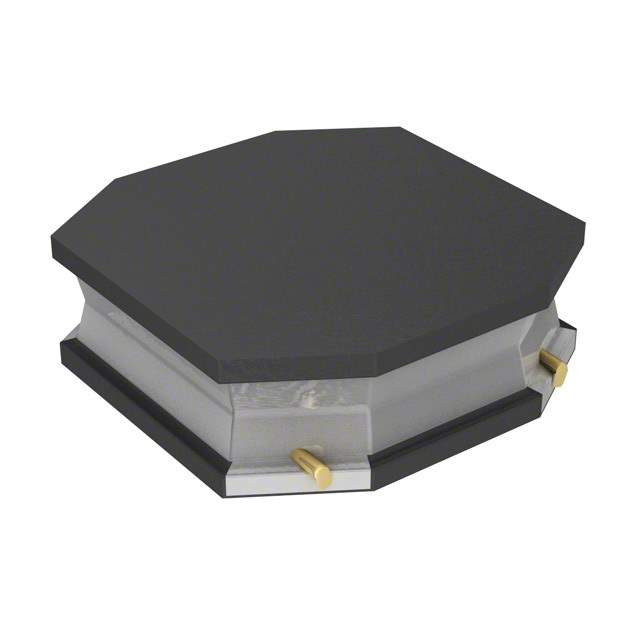

The VLS3010T-4R7MR80 is a wire-wound inductor manufactured by TDK Corporation. It is designed for power management applications requiring a compact size and a specific inductance value.

Applications

• Smartphones: Power supply circuits and DC-DC converters.
• Tablet Computers: Voltage regulation and power management.
• Portable Media Players: Power filtering and regulation.
• DC-DC Converters: Energy storage and ripple current reduction.
• Power Supplies: Filtering and voltage regulation.

Features

• Small Size: 3.0 x 3.0 x 1.0 mm dimensions for space-constrained designs.
• Inductance: 4.7 μH.
• Rated Current: Designed to handle specific current levels.
• Low DC Resistance: Reduces power loss.
• Operating Temperature: Designed for operating within a specified temperature range.

Benefits

• Space Saving: Enables smaller and more compact devices.
• Improved Efficiency: Lower DCR reduces power consumption.
• Stable Performance: Consistent performance across temperature variations.
• Reduced Size and Weight: Contributes to overall device weight reduction.
• Optimized Inductance: Provides the correct inductance for specific circuit functions.

Additional Details

The VLS3010T-4R7MR80 is a magnetically shielded inductor which minimizes EMI. It is a surface mount device (SMD), making it suitable for automated assembly. The precise rated current, DC resistance, Q-factor, and self-resonant frequency (SRF) are detailed in the TDK datasheet for this specific component.
