Same model may have multiple batches, images only for reference.

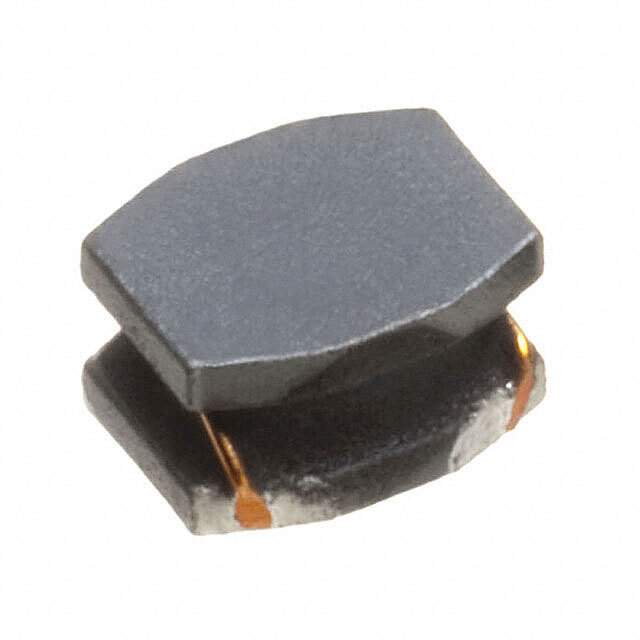

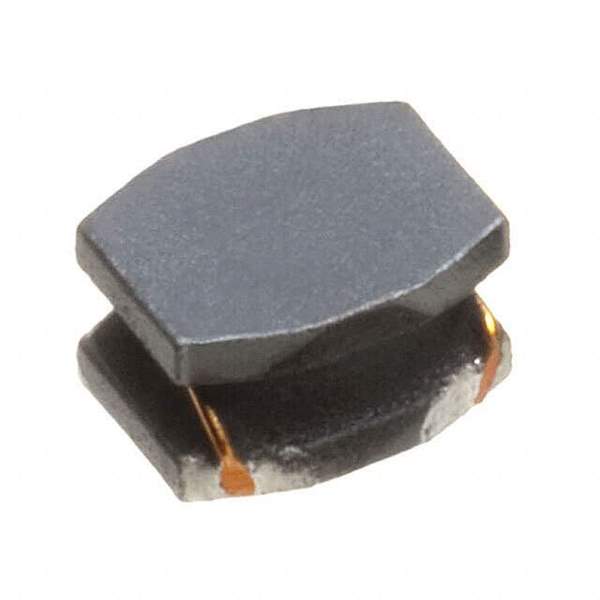

VLS252015T-4R7MR89 Real Image
Same model may have multiple batches, images only for reference.

VLS252015T-4R7MR89

Part No VLS252015T-4R7MR89
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 890MA 318 MOHM
Datasheet
VLS252015T-4R7MR89 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Wirewound
Inductance 4.7μH
Tolerance ±20%
Current Rating 890mA
Current - Saturation 1.2A
DC Resistance (DCR) 318 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 1008 (2520 Metric)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 036381-VLS252015T-4R7MR89
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian VLS252015T-4R7MR89 CAD Model

Description

This electronic component is a wirewound inductor manufactured by TDK Corporation. The Win Source Part Number for this product is 036381-VLS252015T-4R7MR89.

  • Current Rating: 890mA
  • Inductance: 4.7μH
  • Seated Height: 0.039 inches
  • Mounting: SMD (SMT) technology
  • Tolerance: ±20%
  • Current Saturation: 1.2A
  • Frequency for self-resonant: not available
  • Test Frequency: 1MHz
  • Category: inductor, coil, and choke
  • DC Resistance (DCR): 318 mOhm Max
  • Recommendation: not recommended for new designs
  • Temperature Range: -40°C to 105°C
  • Package: 1008 (2520 Metric)
  • Supply and demand: sufficient
