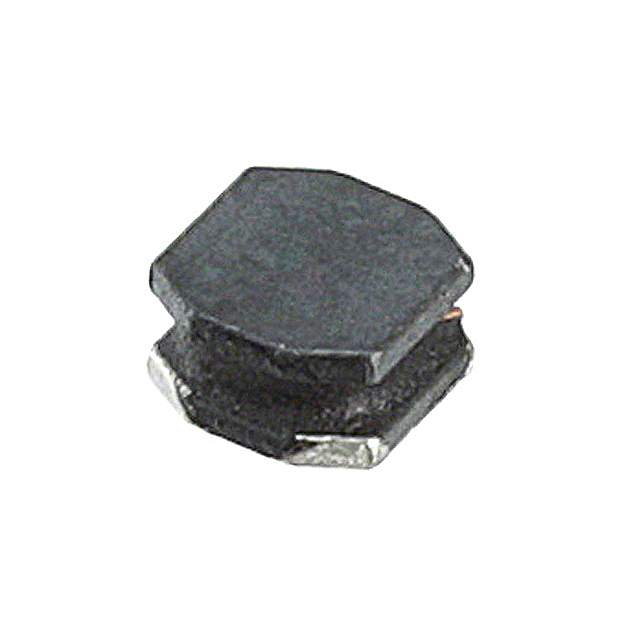

The VLS2010MT-2R2M-1 is a wire-wound inductor produced by TDK Corporation, specifically designed for power inductor applications. Its defining characteristics include a compact size and stable inductance properties even under fluctuating temperature and current conditions. This makes it a reliable component choice for electronic devices where space is limited and consistent performance is critical.

Applications

• DC-DC converters
• Power supplies for various electronic devices
• Noise filtering in power lines
• Step-up (boost) and step-down (buck) converters
• General power management circuitry

Features

• Compact dimensions: 2.0 x 1.0 x 1.0 mm
• Magnetically shielded design
• Excellent inductance stability over temperature variations
• High current handling capability
• RoHS compliant

Benefits

• Reduces PCB space requirements due to its small size.
• Ensures reliable performance across a wide range of operating temperatures.
• Minimizes electromagnetic interference (EMI).
• Contributes to improved power efficiency through low DC resistance.
• Environmentally responsible due to RoHS compliance.

Technical Specifications

Inductance: 2.2 μH
Tolerance: ±20%
DC Resistance (DCR): 0.125 Ω (typical)
Rated Current (Irms): 0.6 A
Saturation Current (Isat): 0.7 A
Operating Temperature Range: -40°C to +125°C (including self-temperature rise)

The VLS2010MT-2R2M-1 inductor is constructed with high-grade materials and undergoes stringent manufacturing processes to guarantee stable electrical performance and long-term durability. The shielded construction effectively reduces electromagnetic interference, making it suitable for use in sensitive electronic applications. Its compact size and robust performance characteristics make it well-suited for power management in space-constrained devices.
