Same model may have multiple batches, images only for reference.

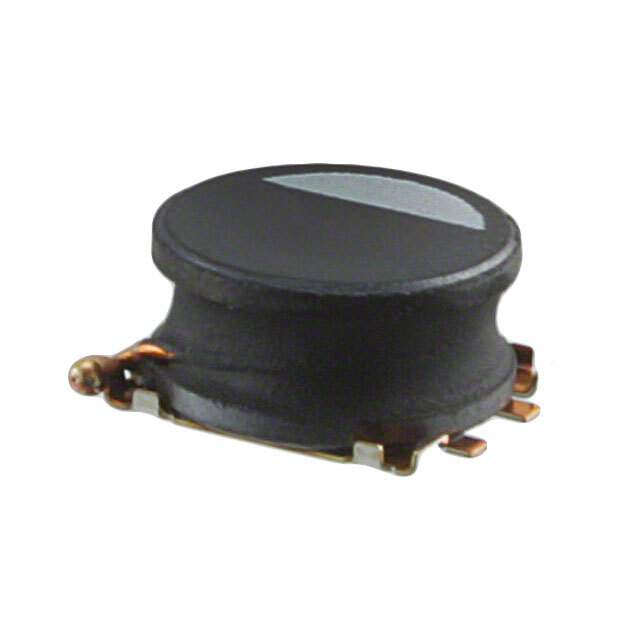

VLP8040T-681M Real Image
Same model may have multiple batches, images only for reference.

VLP8040T-681M

Part No VLP8040T-681M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Wound Ferrite | FIXED IND 680UH 300MA 2.2 OHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel
Status Obsolete
Type Wirewound
Material - Core Ferrite
Inductance 680μH
Tolerance ±20%
Current Rating (Amps) 300mA
Current - Saturation 300mA
Shielding Shielded
DC Resistance (DCR) 2.2Ohm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.315" L x 0.303" W (8.00mm x 7.70mm)
Height - Seated (Maximum) 0.157" (4.00mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 735718-VLP8040T-681M
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VLP8040T-681M CAD Model

Description

The TDK Corporation VLP8040T-681M is a wirewound inductor with a shielded design.

  • Inductance: 680μH ±20%
  • Core Material: Ferrite
  • Maximum DC Resistance (DCR): 2.2Ohm
  • Current Rating: 300mA
  • Saturation Current: 300mA
  • Operating Temperature Range: -40°C to 105°C
  • Manufacturer Package: Non-standard
  • Height: 0.157" (4.00mm)
  • Supply and Demand Status: Limited
  • Popularity: Medium
  • Status: Obsolete; Not recommended for new designs
