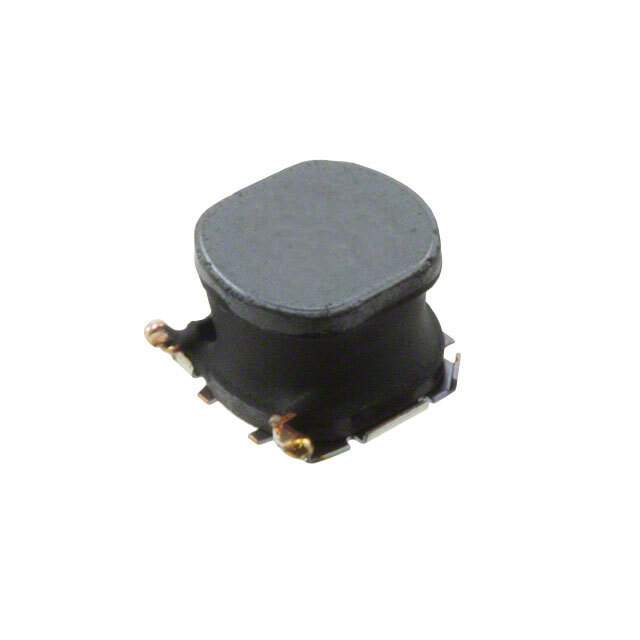

VLP6045LT-1R0N Real Image
Same model may have multiple batches, images only for reference.

VLP6045LT-1R0N

Part No VLP6045LT-1R0N
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Inductors for Power Circuits Wound Ferrite VLPseries
Datasheet
VLP6045LT-1R0N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series VLP
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 1μH
Tolerance ±30%
Current Rating 6.5A
Current - Saturation 8.6A
Shielding Shielded
DC Resistance (DCR) 17 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.268" L x 0.268" W (6.80mm x 6.80mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Win Source Part Number 1279392-VLP6045LT-1R0N
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Limited
Family Name VLP
Introduction Date May 20, 2002
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian VLP6045LT-1R0N CAD Model

Description

The TDK Corporation VLP6045LT-1R0N is a wirewound shielded inductor that offers excellent performance and reliability.

  • Inductance: 1μH
  • Tolerance: ±30%
  • Current Rating: 6.5A
  • Current Saturation: 8.6A
  • Operating Temperature Range: -40°C to 105°C
  • RoHS Compliant: Yes
  • Size: Compact
  • Mounting: Surface mountable
  • Applications: DC-DC converters, power supplies
