Same model may have multiple batches, images only for reference.

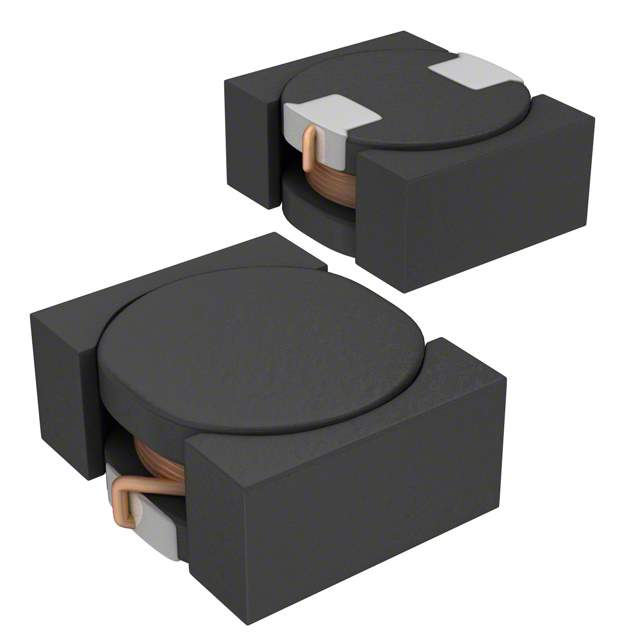

VLF302515MT-4R7M Real Image
Same model may have multiple batches, images only for reference.

VLF302515MT-4R7M

Part No VLF302515MT-4R7M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.95A 90 MOHM
Datasheet
VLF302515MT-4R7M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating 1.95A
Current - Saturation 1.03A
DC Resistance (DCR) 90 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.059" (1.50mm)
Win Source Part Number 1117148-VLF302515MT-4R7M
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name VLF-M
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian VLF302515MT-4R7M CAD Model

Description

The TDK Corporation VLF302515MT-4R7M is a wirewound inductor designed for use in a variety of applications.

  • Inductance: 4.7μH
  • Current Rating: 1.95A
  • Package: SMD
  • Mounting: Surface mount applications
  • Supply and Demand Status: Limited
