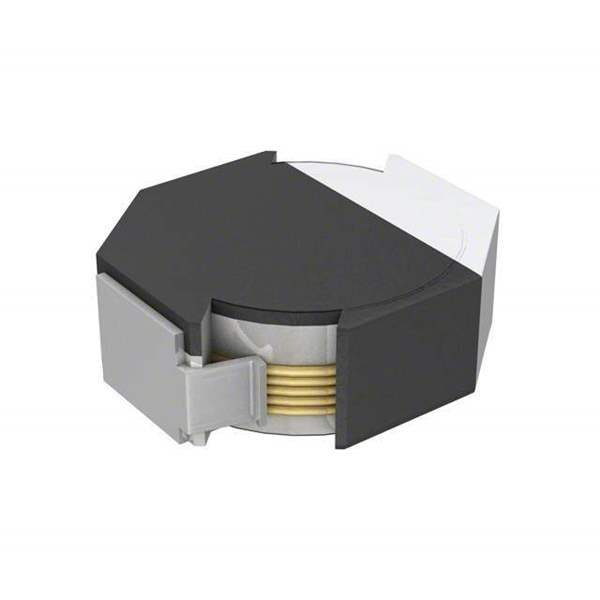

VLF3010AT-100MR49 TDK Corporation
Same model may have multiple batches, images only for reference.

VLF3010AT-100MR49

Part No VLF3010AT-100MR49
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 10UH 490MA 670 MOHM
Datasheet
VLF3010AT-100MR49 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Wirewound
Material - Core Ferrite
Inductance 10μH
Tolerance ±20%
Current Rating 490mA
Current - Saturation 490mA
DC Resistance (DCR) 670 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 036301-VLF3010AT-100MR49
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLF3010AT-100MR49 CAD Model

Description

The TDK Corporation wirewound inductor is a high-quality component that is suitable for use in a wide range of electronic devices.

  • Current Rating: 490mA
  • Inductance: 10μH
  • Material: ferrite
  • Tolerance: ±20%
  • DC Resistance: 670 mOhm Max
  • Temperature: -40°C to 105°C
  • Mounting: SMT
  • Packaging: Reel
