Same model may have multiple batches, images only for reference.

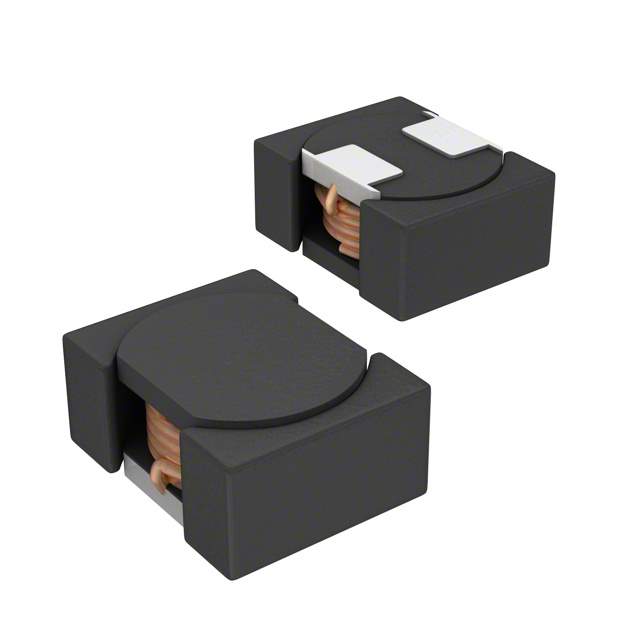

VLF252012MT-220M Real Image
Same model may have multiple batches, images only for reference.

VLF252012MT-220M

Part No VLF252012MT-220M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 460MA 1 OHM SMD
Datasheet
VLF252012MT-220M Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Features 22 µH Shielded Wirewound Inductor 460 mA 1Ohm Max 1008 (2520 Metric)
Manufacturer TDK Corporation
Series VLF-M
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -40°C ~ 105°C
Mounting Surface Mount
Package 1008 (2520 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 445-15802-6, 445-15802-2, 445-15802-1
Quantity per package 2000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 902616-VLF252012MT-220M
Ultra Librarian 3D Model Ultra Librarian VLF252012MT-220M CAD Model

Description

It has a balanced supply and demand status and is part of the VLF-M series.

  • Status: obsolete
  • Win Source Part Number: 902616-VLF252012MT-220M
  • Type: inductor
  • Package: 1008 (2520 Metric)
  • Mounting: surface
  • Operating Temperature Range: -40°C to 105°C
  • Type: shielded wirewound inductor
  • Maximum Current: 460 mA
  • Resistance: 1Ohm
  • Package: reel - TR
  • Quantity per Package: 2000
  • MSL Level: 1 (Unlimited)
  • REACH: unaffected
  • HTSUS: 8504.50.4000
  • Other Part Numbers: 445-15802-6, 445-15802-2, and 445-15802-1
