Same model may have multiple batches, images only for reference.

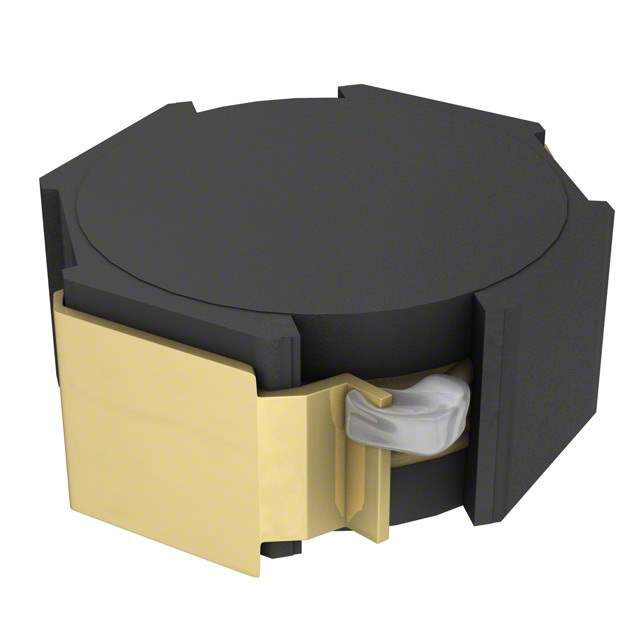

VLF10040T-1R5N8R9 Real Image
Same model may have multiple batches, images only for reference.

VLF10040T-1R5N8R9

Part No VLF10040T-1R5N8R9
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description SMD Inductors(Coils) For Power Line(Wound, Magnetic Shielded) | FIXED IND 1.5UH 8.9A 6.2 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel
Status Obsolete
Type Wirewound
Material - Core Ferrite
Inductance 1.5μH
Tolerance ±30%
Current Rating (Amps) 8.9A
Current - Saturation 9.9A
Shielding Shielded
DC Resistance (DCR) 6.2mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.394" L x 0.382" W (10.00mm x 9.70mm)
Height - Seated (Maximum) 0.157" (4.00mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1279362-VLF10040T-1R5N8R9
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VLF10040T-1R5N8R9 CAD Model

Description

The TDK Corporation VLF10040T-1R5N8R9 wirewound inductor is a shielded surface mount device with an inductance of 1.5μH and a tolerance of ±30%.

  • Temperature Range: -40°C to 105°C.
  • DC Resistance (DCR): 6.2mOhm Max.
  • Current Saturation: 9.9A.
  • Status: Obsolete.
  • Popularity: 95%.
  • Supply and Demand: Limited.
  • Package: Nonstandard.
  • ECCN: EAR99.
