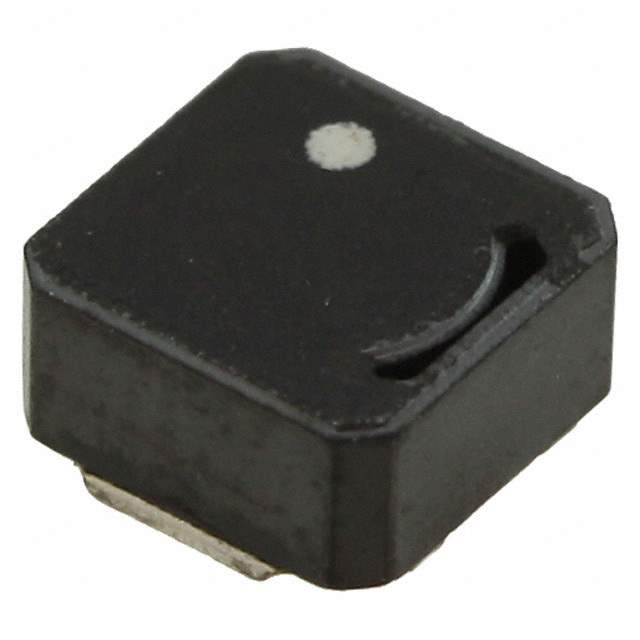

VLCF5028T-221MR22-2 Real Image
Same model may have multiple batches, images only for reference.

VLCF5028T-221MR22-2

Part No VLCF5028T-221MR22-2
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 220UH 220MA 1.38 OHM / Inductor Power Shielded Wirewound 220uH 20% 100KHz 0.54A 1.38Ohm DCR T/R
Datasheet
VLCF5028T-221MR22-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series VLCF
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 220μH
Tolerance ±20%
Current Rating 220mA
Current - Saturation 220mA
Shielding Shielded
DC Resistance (DCR) 1.38 Ohm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Maximum) 0.110" (2.80mm)
Win Source Part Number 799103-VLCF5028T-221MR22-2
Popularity Medium
Supply and Demand Status Balance
Family Name VLCF
Introduction Date May 20, 2002
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian VLCF5028T-221MR22-2 CAD Model

Description

The TDK VLCF5028T-221MR22-2 is a wirewound shielded inductor manufactured by TDK Corporation.

  • Inductance: 220μH
  • Current Rating: 220mA
  • Core Material: Ferrite
  • Tolerance: ±20%
  • Mounting: SMD
  • Dimensions: 0.197" L x 0.197" W (5.00mm x 5.00mm)
  • Height: 0.110" (2.80mm)
  • Operating Temperature Range: -40°C to 105°C
  • Series: VLCF
  • Category: Inductors, Coils, and Chokes
