Same model may have multiple batches, images only for reference.

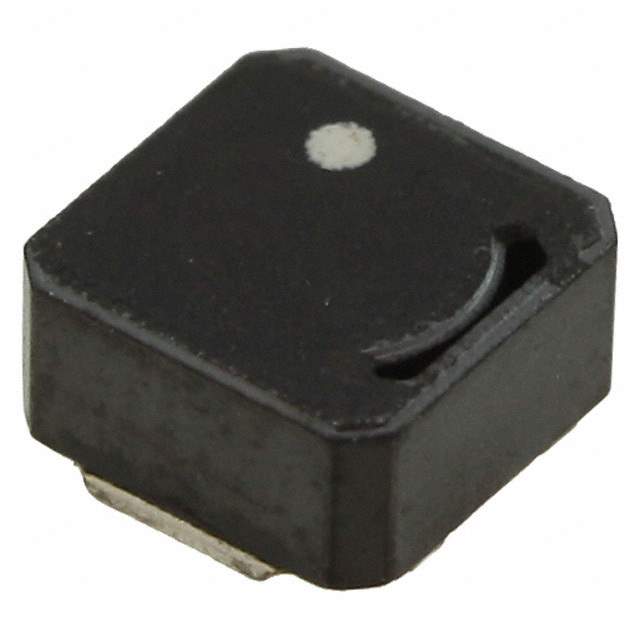

VLCF5028T-220MR71-2 Real Image
Same model may have multiple batches, images only for reference.

VLCF5028T-220MR71-2

Part No VLCF5028T-220MR71-2
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 710MA 140 MOHM
Datasheet
VLCF5028T-220MR71-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 710mA
Current - Saturation 710mA
DC Resistance (DCR) 140 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.110" (2.80mm)
Win Source Part Number 043603-VLCF5028T-220MR71-2
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VLCF5028T-220MR71-2 CAD Model

Description

This wirewound inductor is manufactured by TDK Corporation and has a Win Source Part Number of 043603-VLCF5028T-220MR71-2.

  • Current Rating: 710mA
  • Inductance: 22μH
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Current Saturation: 710mA
  • DC Resistance (DCR): 140 mOhm Max
  • Operating Temperature Range: -40°C to 105°C
