Same model may have multiple batches, images only for reference.

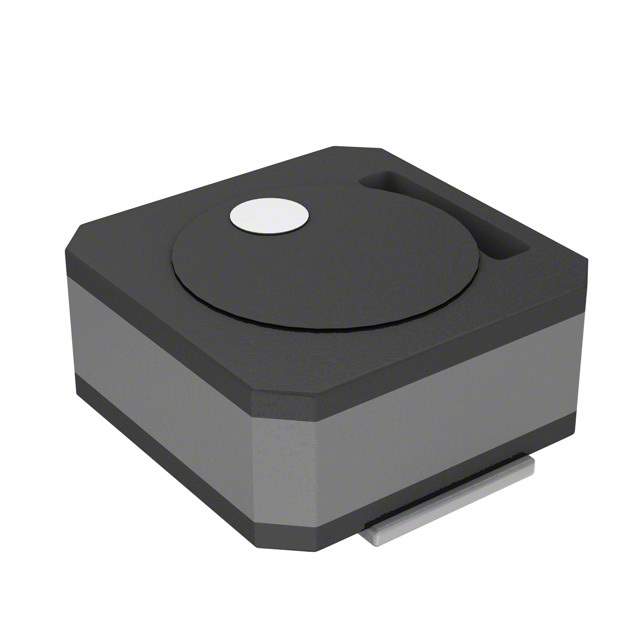

VLCF4020T-150MR68 Real Image
Same model may have multiple batches, images only for reference.

VLCF4020T-150MR68

Part No VLCF4020T-150MR68
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 15UH 680MA 303 MOHM / Inductor Power Shielded Wirewound 15uH 20% 100KHz Ferrite 1A 0.303Ohm DCR 1515 T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series VLCF
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 15μH
Tolerance ±20%
Current Rating 680mA
Current - Saturation 680mA
Shielding Shielded
DC Resistance (DCR) 303 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Maximum) 0.079" (2.00mm)
Win Source Part Number 799097-VLCF4020T-150MR68
Popularity Medium
Supply and Demand Status Limited
Family Name VLC
Introduction Date May 20, 2002
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian VLCF4020T-150MR68 CAD Model

Description

The TDK VLCF4020T-150MR68 is a shielded, surface mount wirewound inductor manufactured by TDK Corporation.

  • Inductance: 15μH
  • Current Rating: 680mA
  • Tolerance: ±20%
  • DC Resistance: 303 mOhm max
  • Core Material: Ferrite
  • Package: Nonstandard
  • Series: VLC
  • Availability: Limited
  • EOL Date: 2027 (estimated)
  • Halogen-Free: Yes
  • Dimensions: 0.157" L x 0.157" W (4.00mm x 4.00mm)
  • Height: 0.079" (2.00mm)
