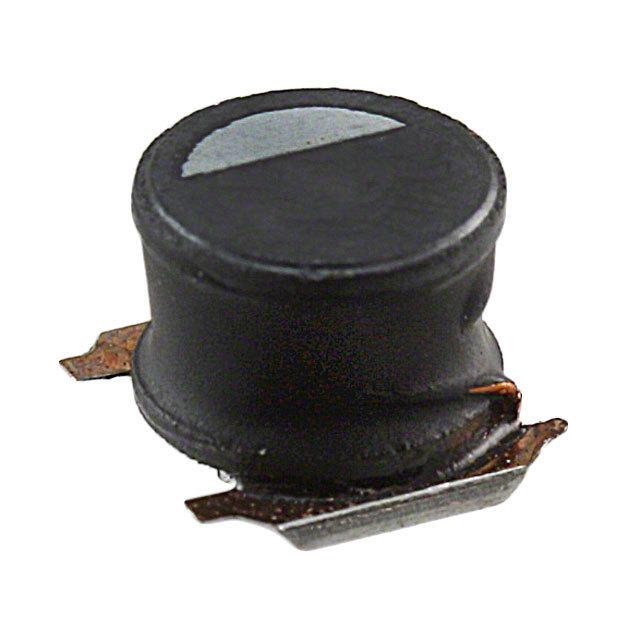

The VLC6045T-2R2N-XL is a wire-wound inductor from TDK Corporation designed for use in power circuits requiring a compact and robust component. It is part of the VLC series, which emphasizes small size without compromising electrical performance. Its key features make it suitable for a variety of power management applications.

Applications:

• DC-DC converters
• Power supplies for industrial equipment
• Voltage regulators in automotive applications
• Noise filtering

Features:

• Compact size: 6.0 x 6.0 x 4.5 mm
• Inductance: 2.2 μH
• High rated current capacity
• Shielded construction to minimize EMI
• Low DC resistance (DCR)

Benefits:

• Allows for high-density circuit board designs.
• Improves power conversion efficiency by reducing losses.
• Reduces electromagnetic interference, ensuring stable operation of surrounding circuits.
• Suitable for demanding industrial and automotive environments.
• Provides stable inductance over a wide temperature range.

Technical Specifications:

• Inductance: 2.2 μH ±30%
• DC Resistance (DCR): 0.026 Ω (typical)
• Rated Current: 5.8 A
• Saturation Current: 7.5 A (typical)
• Operating Temperature Range: -40°C to +125°C (including self-temperature rise)
• Self-Resonant Frequency (SRF): 80 MHz (typical)

The VLC6045T-2R2N-XL inductor boasts a shielded construction, effectively mitigating electromagnetic interference, which is crucial for maintaining the integrity of nearby sensitive components. Its low DC resistance contributes to enhanced power conversion efficiency by minimizing energy losses. The high rated current allows the inductor to withstand substantial load conditions, making it appropriate for demanding applications. Additionally, the component adheres to RoHS standards, ensuring its environmental compliance.

To achieve optimal performance and ensure the inductor's longevity, adherence to the manufacturer's recommended circuit design and layout practices is essential. Comprehensive details regarding the component's specifications and application guidelines are available in the TDK datasheet for the VLC6045T-2R2N-XL. Consulting this datasheet is paramount for ensuring proper implementation and maximizing the inductor's operational lifespan.
