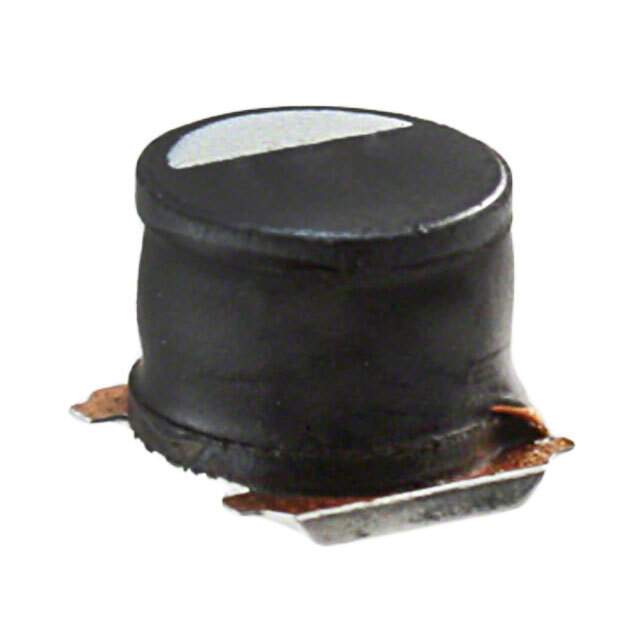

VLC5045T-4R7M Real Image
Same model may have multiple batches, images only for reference.

VLC5045T-4R7M

Part No VLC5045T-4R7M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description 1.2 A, 20 V, 700 kHz/1.4 MHz, Nonsynchronous Step-Down Regulator | FIXED IND 4.7UH 3.3A 34 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel
Status Obsolete
Type Wirewound
Inductance 4.7μH
Tolerance ±20%
Current Rating (Amps) 3.3A
Current - Saturation 3.3A
Shielding Shielded
DC Resistance (DCR) 34mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1279350-VLC5045T-4R7M
Manufacturer Homepage www.analog.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VLC5045T-4R7M CAD Model

Description

The VLC5045T-4R7M is an SMD wirewound type inductor with a shielding of shielded.

  • Inductance: 4.7μH
  • Tolerance: ±20%
  • Current Saturation: 3.3A
  • DC Resistance (DCR): 34mOhm Max
  • Temperature Range: -40°C to 105°C
  • Manufacturer Package: Nonstandard
  • Height - Seated (Maximum): 0.177" (4.50mm)
  • Supply and Demand: Limited
  • Manufacturer Pack Quantity: 1 Unit
  • MSL Level: 1 (Unlimited)
  • Parts Dimension: 0.197" L x 0.197" W (5.00mm x 5.00mm)
  • Current Rating (Amps): 3.3A
  • Inductance Frequency - Test: 100kHz
  • Category: Inductors, Coils, Chokes
  • Status: Obsolete
  • Manufacturer: TDK Corporation
