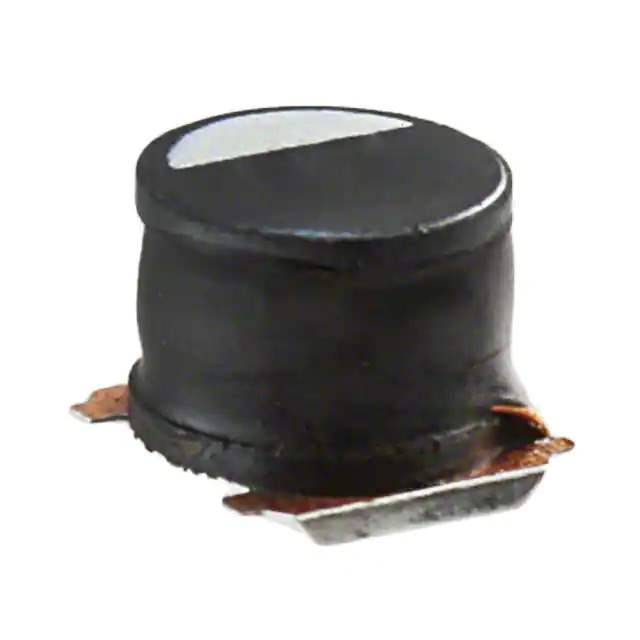

Same model may have multiple batches, images only for reference.

VLC5045T-100M

Name: VLC5045T-100M
Brand: TDK Corporation
SKU: 743085
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	VLC5045T-100M
Manufacturer	TDK Corporation
Catalog	Fixed Inductors
Description	FIXED IND 10UH 2.1A 66 MOHM SMD
Datasheet	VLC5045T-100M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	TDK Corporation
Series	VLC
Package	Tape & Reel
Product Status	Obsolete
Type	Wirewound
Inductance	10 µH
Tolerance	±20%
Current Rating (Amps)	2.1 A
Current - Saturation (Isat)	2.1A
Shielding	Shielded
DC Resistance (DCR)	66mOhm Max
Temperature Range - Operating	-40°C ~ 105°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max)	0.177" (4.50mm)
Standard Package	1,500 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	743085-VLC5045T-100M
Ultra Librarian 3D Model	Ultra Librarian VLC5045T-100M CAD Model

Alternative Products

Description

The VLC series is a range of wirewound inductors designed for various electronic applications.

Size: 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height: 0.177" (4.50mm)
Inductance: 10 μH
Tolerance: ±20%
Shielded: Yes
Package: tape & reel
DC Resistance (DCR): 66 mOhm max
Current Rating: Up to 2.1 A
Operating Temperature Range: -40°C to 105°C
Obsolete: Yes
Manufacturer: TDK Corporation
