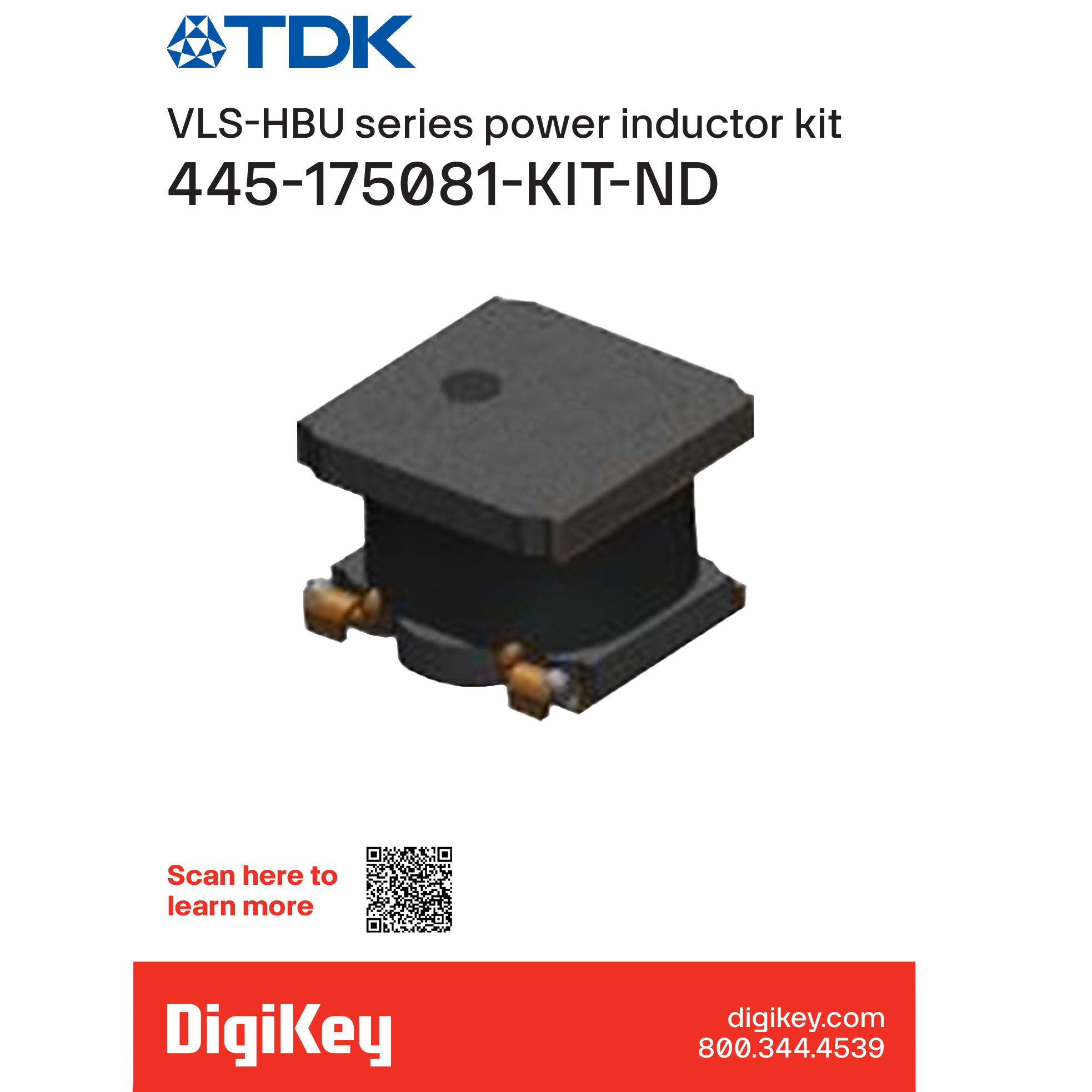

VLBU1007090T-R12L

Part No VLBU1007090T-R12L
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 120NH 70A 0.18MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 120 nH
Tolerance ±15%
Current Rating (Amps) 70 A
Current - Saturation (Isat) 110A
Shielding Unshielded
DC Resistance (DCR) 0.18mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Case / Package Nonstandard
Size / Dimension 0.394" L x 0.276" W (10.00mm x 7.00mm)
Height - Seated (Max) 0.354\
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1509674-VLBU1007090T-R12L
Ultra Librarian 3D Model Ultra Librarian VLBU1007090T-R12L CAD Model
