Same model may have multiple batches, images only for reference.

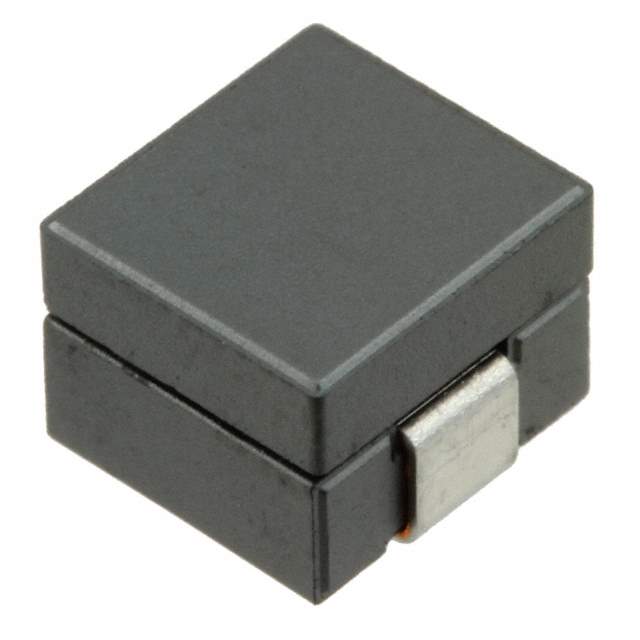

VLB7050HT-R11M Real Image
Same model may have multiple batches, images only for reference.

VLB7050HT-R11M

Part No VLB7050HT-R11M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 110NH 36A 0.27 MOHM
Datasheet
VLB7050HT-R11M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 110nH
Tolerance ±20%
Current Rating 36A
Current - Saturation 47A
DC Resistance (DCR) 0.27 mOhm Max
Temperature Range - Operating -40°C to 125°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.197" (5.00mm)
Win Source Part Number 1117088-VLB7050HT-R11M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLB7050HT-R11M CAD Model

Description

The TDK Corporation Wirewound inductor is a high-performance electronic component designed for use in various applications.

  • Current Rating: 36A
  • Inductance: 110nH
  • Material: Ferrite
  • Tolerance: ±20%
  • Mounting: SMD (SMT)
  • Maximum Seated Height: 0.197"
  • DC Resistance (DCR): 0.27 mOhm Max
  • Operating Temperature Range: -40°C to 125°C
  • Win Source Part Number: 1117088-VLB7050HT-R11M
