Same model may have multiple batches, images only for reference.

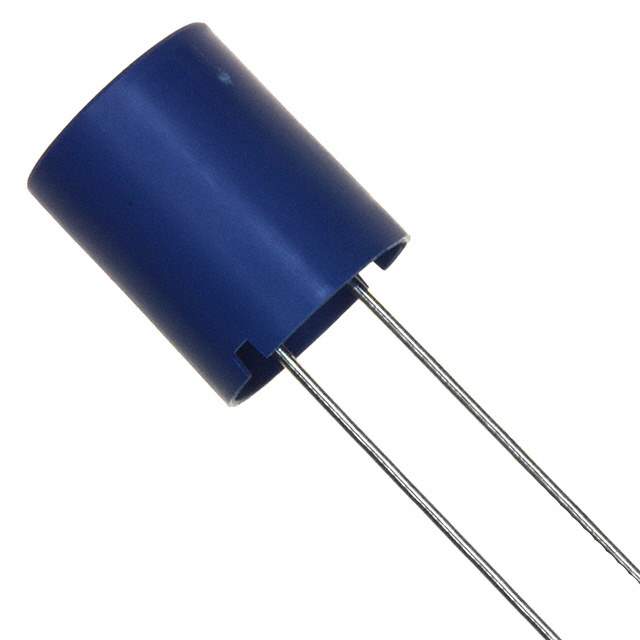

TSL1315RA-682JR30-PF Real Image
Same model may have multiple batches, images only for reference.

TSL1315RA-682JR30-PF

Part No TSL1315RA-682JR30-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 6.8MH 300MA 6.5 OHM TH
Datasheet
TSL1315RA-682JR30-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Inductance 6.8mH
Tolerance ±5%
Current Rating 300mA
Current - Saturation 460mA
DC Resistance (DCR) 6.5 Ohm Max
Q @ Freq 30 @ 252kHz
Frequency - Self Resonant 380kHz
Temperature Range - Operating -20°C to 85°C
Frequency - Test 1kHz
Mounting Through Hole
Height - Seated (Max) 0.669" (17.00mm)
Win Source Part Number 122976-TSL1315RA-682JR30-PF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TSL1315RA-682JR30-PF CAD Model

Description

The TSL1315RA-682JR30-PF is an inductor from TDK Corporation.

  • Manufacturer: TDK Corporation
  • Inductance: 6.8mH
  • Tolerance: ±5%
  • Mounting: Through-hole
  • Maximum Seated Height: 0.669" (17.00mm)
  • Current Rating: 300mA
  • Saturation Current: 460mA
  • Q value @ Frequency: 30 @ 252kHz
  • Self-Resonant Frequency: 380kHz
  • Operating Temperature Range: -20°C to 85°C
  • Supply and Demand Status: Limited
  • Package: ammo
