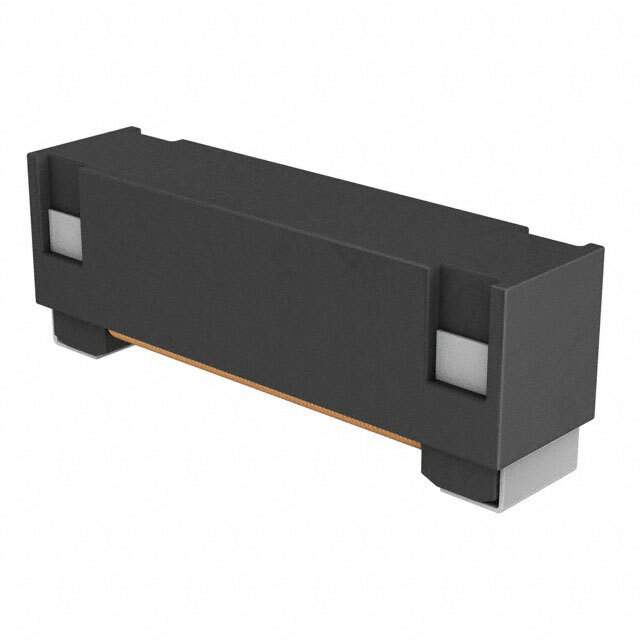

TPL802727-492H Real Image
Same model may have multiple batches, images only for reference.

TPL802727-492H

Part No TPL802727-492H
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.91MH 85 OHM SMD / 4.91 mH Unshielded Inductor 85Ohm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer TDK Corporation
Packaging Reel - TR
Product Status Obsolete
Inductance 4.91 mH
Tolerance ±3%
Shielding Unshielded
DC Resistance (DCR) 85Ohm Max
Q @ Freq 30 @ 125kHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 125 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.309" L x 0.106" W (7.85mm x 2.70mm)
Height - Seated (Max) 0.114" (2.90mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 2,500
Win Source Part Number 1327672-TPL802727-492H
Ultra Librarian 3D Model Ultra Librarian TPL802727-492H CAD Model

Description

The TDK Corporation 1327672-TPL802727-492H is a fixed inductor that belongs to the inductors, coils, and chokes category.

  • Tolerance: ±3%
  • Inductance: 4.91 mH
  • Maximum Seated Height: 0.114" (2.90mm)
  • DC Resistance (DCR): 85Ohm Max
  • Mounting Type: Surface Mountable
  • Standard Package: 2,500
  • AEC-Q200: Yes
  • Q @ Freq: 30 @ 125kHz
  • Material: Non-standard
