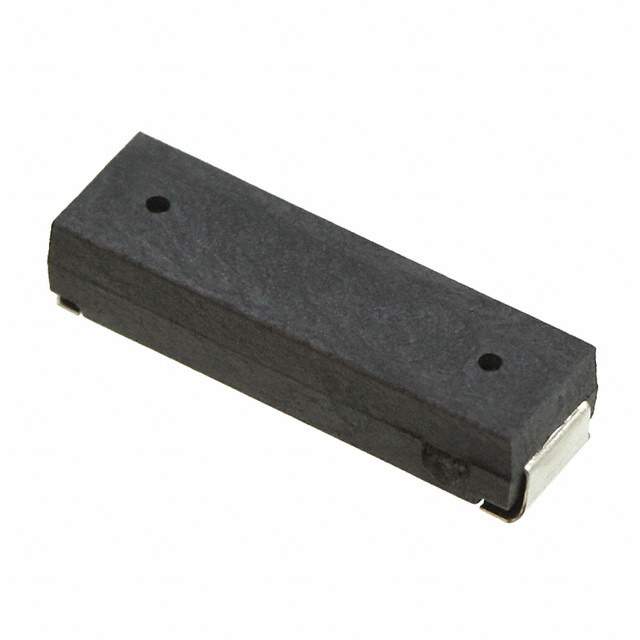

TPL1183525-262J-261N Real Image1 TPL1183525-262J-261N Real Image2
Same model may have multiple batches, images only for reference.
TPL1183525-262J-261N Real Image1 TPL1183525-262J-261N Real Image2
TPL1183525-262J-261N Real Image1 TPL1183525-262J-261N Real Image2
Same model may have multiple batches, images only for reference.

TPL1183525-262J-261N

Part No TPL1183525-262J-261N
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.61MH 26 OHM SMD / 2.61 mH Unshielded Inductor 26Ohm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series TPL
Package Tape & Reel
Product Status Obsolete
Inductance 2.61 mH
Tolerance ±5%
Shielding Unshielded
DC Resistance (DCR) 26Ohm
Q @ Freq 50 @ 125kHz
Frequency - Self Resonant 650kHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 125 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.465" L x 0.138" W (11.80mm x 3.50mm)
Height - Seated (Max) 0.106" (2.70mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 445-175362-1,445-175362-2,TPL1183525-262J-261N-ND,445-175362-6
Standard Package 2,500
Win Source Part Number 981395-TPL1183525-262J-261N
Ultra Librarian 3D Model Ultra Librarian TPL1183525-262J-261N CAD Model

Description

The TPL1183525-262J-261N is an obsolete electronic component manufactured by TDK Corporation.

  • Manufacturer: TDK Corporation
  • Status: Obsolete
  • Category: Inductors, Coils, Chokes
  • Type: Fixed Inductor
  • Inductance: 2.61 mH
  • Package/Case: Nonstandard
  • Tolerance: ±5%
  • DC Resistance (DCR): 26Ohm
  • Operating Temperature: -40°C to 125°C
  • Frequency Self-Resonant: 650kHz
