Same model may have multiple batches, images only for reference.

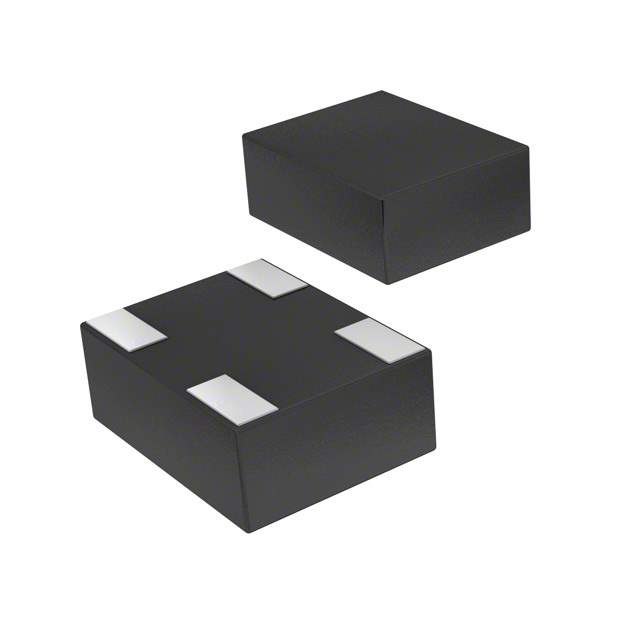

TFSC06054125-2113A1 Real Image
Same model may have multiple batches, images only for reference.

TFSC06054125-2113A1

Part No TFSC06054125-2113A1
Manufacturer TDK Corporation
Catalog RF Directional Coupler
Description THIN-FILM DIRECTIONAL COUPLER 2.
Datasheet
TFSC06054125-2113A1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Coupler Type Standard
Frequency 2.4GHz to 2.5GHz, 4.9GHz to 5.85GHz
Coupling Factor 19dB
Applications General Purpose
Insertion Loss 0.5dB
Win Source Part Number 032109-TFSC06054125-2113A1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TFSC06054125-2113A1 CAD Model

Description

The TDK Corporation 032109-TFSC06054125-2113A1 is a coupler designed for use in RF/IF and RFID applications.

  • Manufacturer: TDK Corporation
  • Win Source Part Number: Win Source Part Number.
  • Frequencies: operates on frequencies ranging from 2.4GHz to 2.5GHz and 4.9GHz to 5.85GHz
  • Coupling Factor: 19dB
  • Insertion Loss: 0.5dB.
  • Suitability: suitable for use in a range of general-purpose applications.
