Same model may have multiple batches, images only for reference.

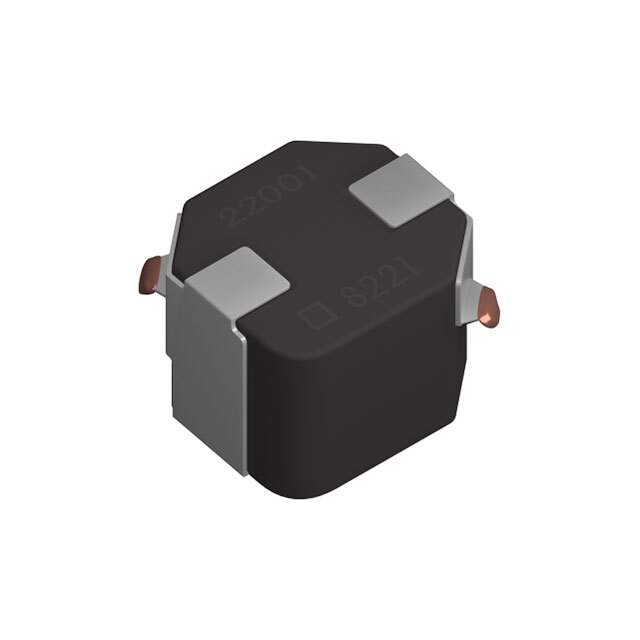

SPM7054VT-330M-D Real Image
Same model may have multiple batches, images only for reference.

SPM7054VT-330M-D

Part No SPM7054VT-330M-D
Manufacturer TDK Corporation
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SPM-VT-D
Type Drum Core, Wirewound
Material - Core Metal Composite
Inductance 33 µH
Tolerance ±20%
Current Rating (Amps) 3.4 A
Current - Saturation (Isat) 3.6A
Shielding Shielded
DC Resistance (DCR) 107.47mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.295" L x 0.276" W (7.50mm x 7.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Other Names 445-181516-2,445-181516-1,445-181516-6
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1272515-SPM7054VT-330M-D
Ultra Librarian 3D Model Ultra Librarian SPM7054VT-330M-D CAD Model

Description

The SPM7054VT-330M-D is a fixed inductor from TDK Corporation with an inductance of 33 µH and a tolerance of ±20%.

  • Series: SPM-VT-D
  • Type: Drum Core, Wirewound
  • Core Material: Metal Composite
  • Height: 0.213" (5.40mm)
  • Dimension: 0.295" L x 0.276" W (7.50mm x 7.00mm)
  • Shielded: Yes
  • Mounting: Surface Mount
  • Package/Case: Nonstandard
  • DC Resistance (DCR): 107.47mOhm max
  • ECCN: EAR99
  • HTSUS: 8504.50.8000
  • Current Rating: 3.4 A
  • Inductance Frequency: 100 kHz
  • AEC-Q200: Yes
  • Temperature Range: -55°C ~ 155°C
  • Part Numbers: 445-181516-2, 445-181516-1, and 445-181516-6
