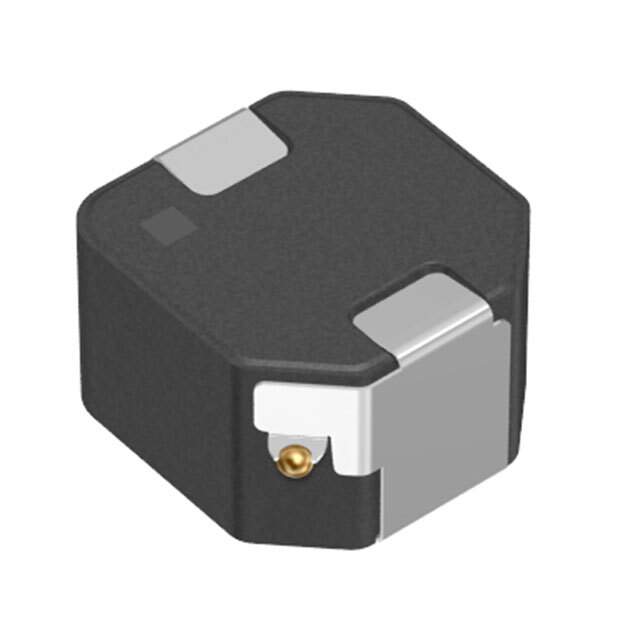

SPM6545VT-2R2M-D

Part No SPM6545VT-2R2M-D
Manufacturer TDK Corporation
Catalog Fixed Inductors
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SPM-VT-D
Type Drum Core, Wirewound
Material - Core Metal Composite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 9.8 A
Current - Saturation (Isat) 19.4A
Shielding Shielded
DC Resistance (DCR) 10.4mOhm
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.276" L x 0.256" W (7.00mm x 6.50mm)
Height - Seated (Max) 0.177" (4.50mm)
Other Names 445-SPM6545VT-2R2M-DCT,445-SPM6545VT-2R2M-DDKR,445-SPM6545VT-2R2M-DTR
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1272522-SPM6545VT-2R2M-D
Ultra Librarian 3D Model Ultra Librarian SPM6545VT-2R2M-D CAD Model

Description

The SPM6545VT-2R2M-D from TDK Corporation is a fixed inductor that falls under the category of inductors, coils, and chokes.

  • Series: SPM-VT-D
  • Core Type: Drum core, wirewound
  • Shielded: Yes
  • Inductance: 2.2 µH
  • Tolerance: ±20%
  • Height: 0.177" (4.50mm)
  • Package: 1,000
  • AEC-Q200 Rated: Yes
  • Material Core: Metal composite
  • DC Resistance (DCR): 10.4mOhm
  • Current Rating: 9.8 A
