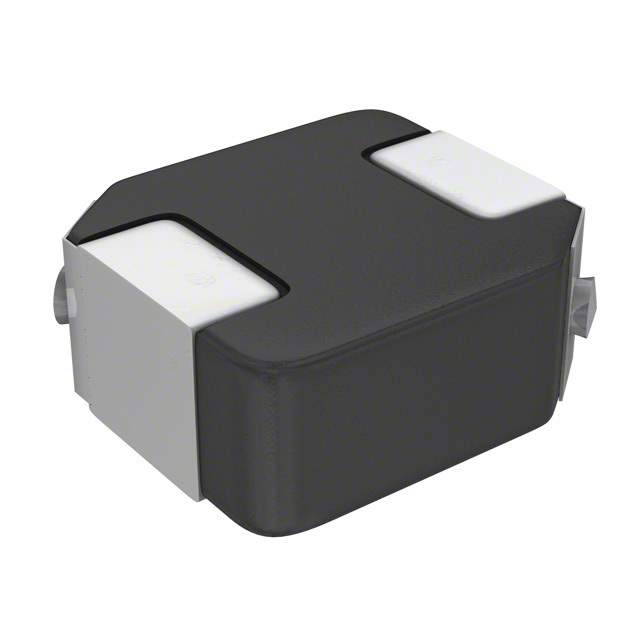

SPM6530T-1R0M120 TDK Corporation SPM6530T-1R0M120 Real Image SPM6530T-1R0M120 real image
Same model may have multiple batches, images only for reference.
SPM6530T-1R0M120 TDK Corporation SPM6530T-1R0M120 Real Image SPM6530T-1R0M120 real image
SPM6530T-1R0M120 TDK Corporation SPM6530T-1R0M120 Real Image SPM6530T-1R0M120 real image
Same model may have multiple batches, images only for reference.

SPM6530T-1R0M120

Part No SPM6530T-1R0M120
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1UH 13A 7.81 MOHM SMD / Inductor Power Shielded Wirewound 1uH 20% 100KHz Metal 13A 0.00781Ohm DCR T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Metal
Inductance 1μH
Tolerance ±20%
Current Rating 13A
Current - Saturation 14.1A
DC Resistance (DCR) 7.81 mOhm Max
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.118" (3.00mm)
Win Source Part Number 030760-SPM6530T-1R0M120
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name SPM
Introduction Date May 20, 2002
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian SPM6530T-1R0M120 CAD Model

Description

The TDK Corporation SPM6530T-1R0M120 is a wirewound type inductor with a metal core and a 1μH inductance.

  • Current Rating: 13A
  • Saturation Current: 14.1A
  • Tolerance: ±20%
  • Maximum DCR: 7.81 mOhm
  • Frequency Test: 100kHz
  • Temperature Range: -40°C to 125°C
  • Mounting: Surface Mount Device (SMD)
  • Packaging: Reel - TR
  • Estimated EOL Date: 2027
  • Halogen-Free Compliant: Yes
  • ECCN: EAR99
