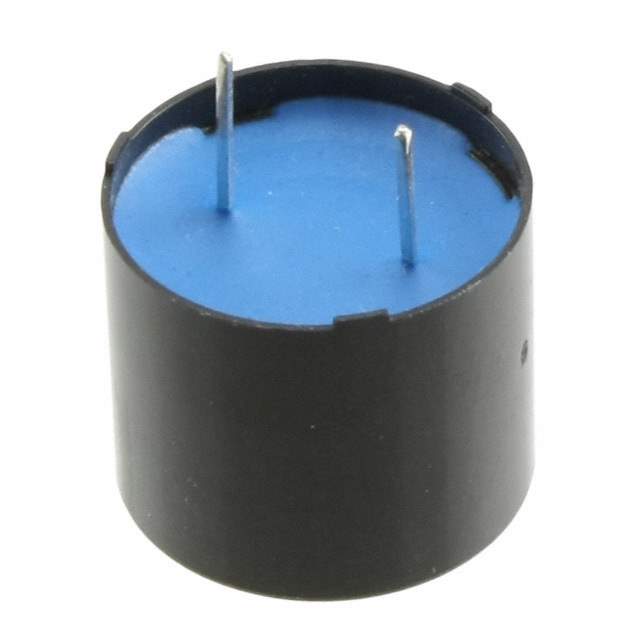

SD1614TT-A5ME Real Image
Same model may have multiple batches, images only for reference.

SD1614TT-A5ME

Part No SD1614TT-A5ME
Manufacturer TDK Corporation
Catalog Alarms, Buzzers, and Sirens
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products>Alarms, Buzzers, and Sirens
Mfr TDK Corporation
Series SD
Package Bulk
Input Type Zero-Peak Signal
Voltage - Rated 12 V
Voltage Range 6 ~ 16V
Frequency 2.048kHz
Technology Magnetic
Sound Pressure Level (SPL) 85dB @ 12V, 10cm
Current - Supply 100mA
Port Location Top
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Panel Mount, Flange
Termination PC Pins
Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 0.551" (14.00mm)
Other Names 445-175288
Standard Package 480
MSL Level Not Applicable
ECCN EAR99
HTSUS 8531.80.9041
Win Source Part Number 1314327-SD1614TT-A5ME
Ultra Librarian 3D Model Ultra Librarian SD1614TT-A5ME CAD Model

Description

The TDK Corporation SD1614TT-A5ME is a magnetic buzzer with a frequency of 2.048kHz and a sound pressure level (SPL) of 85dB @ 12V, 10cm.

  • Voltage Rating: 12V
  • Current Supply: 100mA
  • Mounting Type: Panel Mount and Flange
  • Dimension: 0.630" Dia (16.00mm)
  • Operating Temperature: -40°C to 85°C
  • Termination: PC pins
  • Ideal for: Alarms, buzzers, and siren applications
