PC95PQI26/12Z-12

Name: PC95PQI26/12Z-12
Brand: TDK Corporation
SKU: 973587
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PC95PQI26/12Z-12
Manufacturer	TDK Corporation
Catalog	Ferrite Cores

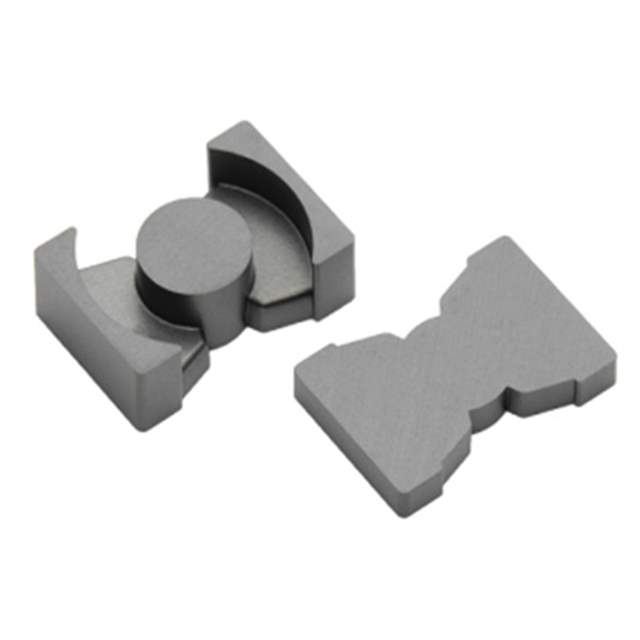

Description	FERRITE CORE PQI 11.95UH 1SET / Uncoated PC95 Ferrite Core HPQ, PQD Type 1.043" (26.50mm) Length 0.748" (19.00mm) Width Diameter 0.287" (7.30mm) Height
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Magnetics - Transformer, Inductor Components>Ferrite Cores
Mfr	TDK Corporation
Series	Planar
Package	Tray
Core Type	HPQ, PQD
Supplier Device Package	PQI 26 x 12
Material	PC95
Inductance Factor (Al)	11.95 µH
Tolerance	±25%
Gap	Ungapped
Core Factor (ΣI/A) mm<sup>-1</sup>	0.22
Effective Length (le) mm	123
Effective Area (Ae) mm2	27.7
Minimum Core Cross Section (Amin) mm2	109
Effective Magnetic Volume (Ve) mm3	3410
Finish	Uncoated
Height	0.287" (7.30mm)
Length	1.043" (26.50mm)
Width	0.748" (19.00mm)
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.90.9630
Other Names	445-180873
Standard Package	180
Win Source Part Number	973587-PC95PQI26/12Z-12
Ultra Librarian 3D Model	Ultra Librarian PC95PQI26/12Z-12 CAD Model

Alternative Products

Description

The PC95PQI26/12Z-12 is a ferrite core transformer from TDK Corporation.

Core Type: HPQ, PQD
Gap: Un-gapped
Inductance Factor (Al): 11.95 μH
Tolerance: ±25%
Package: PQI 26 x 12
Standard Package: 180
