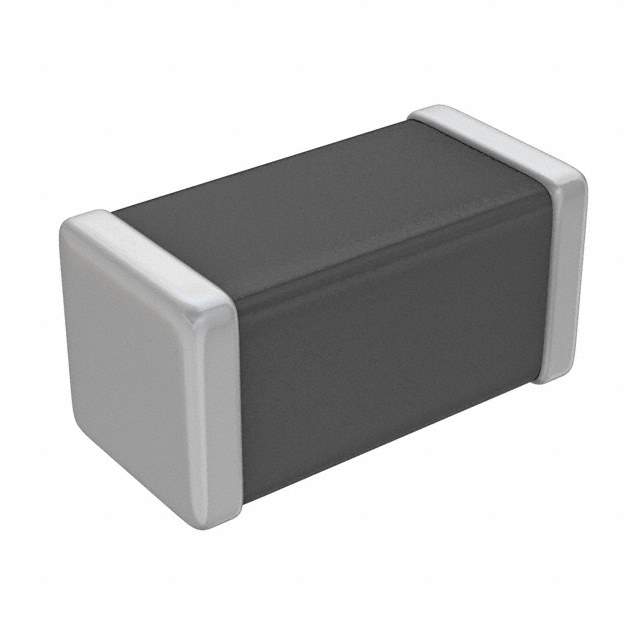

MPZ1005S600CT000 Real Image
Same model may have multiple batches, images only for reference.

MPZ1005S600CT000

Part No MPZ1005S600CT000
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 60 OHM 0402 1LN
Datasheet
MPZ1005S600CT000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 1
Impedance @ Frequency 60 Ohm @ 100MHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 60 mOhm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.022" (0.55mm)
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Win Source Part Number 105701-MPZ1005S600CT000
Ultra Librarian 3D Model Ultra Librarian MPZ1005S600CT000 CAD Model

Description

This electronic component is a power line filter manufactured by TDK Corporation.

  • Packaging: reel packaging
  • Current Rating: 1.5A
  • Mounting Type: surface mount device (SMD)
  • Height: 0.022 inches (0.55mm)
  • Line: 1
  • Impedance: 60 Ohm @ 100MHz
  • DC Resistance (DCR): 60 mOhm
  • Category: filters
  • Product Status: active
  • Temperature Range: -55°C to 125°C
  • Dimension: 0.039 inches L x 0.020 inches W (1.00mm x 0.50mm)
