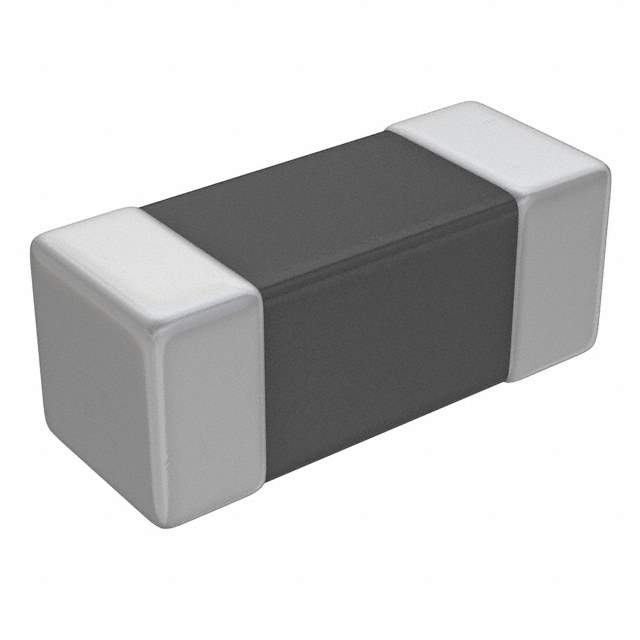

The MMZ2012S400ATD25 is a ferrite bead from TDK Corporation designed for noise suppression in electronic circuits. It is a surface-mount device that effectively attenuates high-frequency noise, preventing it from interfering with the operation of sensitive components and systems. The "400" in the part number indicates an impedance of 40 ohms at 100 MHz, a key parameter for selecting the appropriate ferrite bead for a given application.

Applications

• Noise suppression in power lines: Used to filter out high-frequency noise from power supply lines, ensuring clean power for sensitive electronic circuits.
• Signal line filtering: Employed in signal lines to suppress unwanted noise and improve signal integrity, particularly in high-speed data transmission.
• EMI suppression in electronic devices: Implemented in a wide range of electronic devices to reduce electromagnetic interference (EMI) and ensure compliance with regulatory standards.
• Noise filtering in USB and other data interfaces: Used in USB ports, HDMI cables, and other data interfaces to minimize noise and ensure reliable data transmission.
• Mobile phones and wireless devices: Found in mobile phones, tablets, and other wireless devices to suppress noise and improve signal quality.

Features

• Surface-mount design: Allows for easy and efficient assembly on printed circuit boards (PCBs).
• High impedance at high frequencies: Provides effective noise suppression at high frequencies.
• Low DC resistance: Minimizes power loss and voltage drop across the ferrite bead.
• Small size: Compact size allows for use in space-constrained applications.
• Wide operating temperature range: Operates reliably over a wide range of temperatures.

Benefits

• Reduces EMI: Minimizes electromagnetic interference, preventing noise from affecting other components or devices.
• Improves signal integrity: Enhances the quality of signals by suppressing unwanted noise and interference.
• Enhances system reliability: Increases the overall reliability of electronic systems by preventing noise-related malfunctions.
• Simplifies PCB design: Surface-mount design simplifies PCB layout and assembly.
• Meets regulatory requirements: Helps electronic devices meet regulatory standards for EMI emissions.

Additional Details

The MMZ2012S400ATD25 conforms to the 2012 size code, meaning its dimensions are approximately 2.0 x 1.2 mm. It is typically used in applications where a moderate level of noise suppression is required. The specific impedance and frequency characteristics should be carefully considered based on the noise frequency and amplitude in the target application. The rated current should also be taken into account to prevent saturation of the ferrite material, which can reduce its effectiveness. Consult the manufacturer's datasheet for detailed electrical characteristics, temperature derating curves, and recommended soldering profiles. The material composition complies with RoHS regulations, ensuring environmental friendliness.
