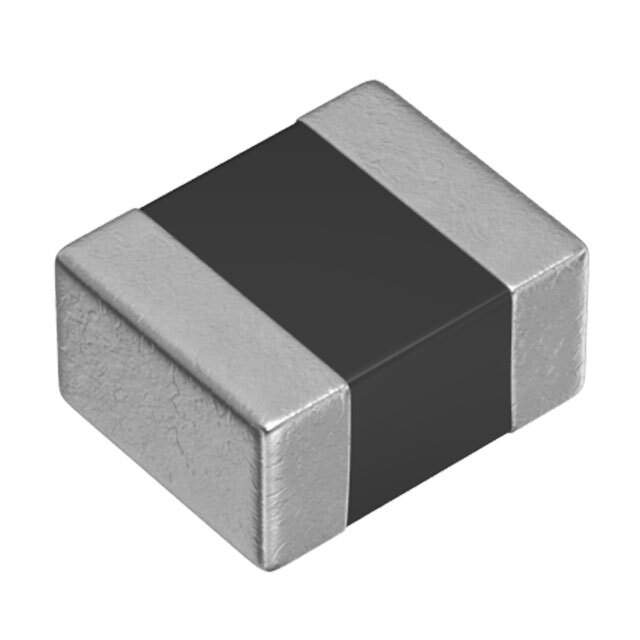

MLP2520S1R5MT0S1 Real Image
Same model may have multiple batches, images only for reference.

MLP2520S1R5MT0S1

Part No MLP2520S1R5MT0S1
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1.5UH 1.2A 90 MOHM SMD
Datasheet
MLP2520S1R5MT0S1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Multilayer
Material - Core Ferrite
Inductance 1.5μH
Tolerance ±20%
Current Rating 1.2A
DC Resistance (DCR) 117 mOhm Max
Temperature Range - Operating -40°C to 125°C
Frequency - Test 2MHz
Mounting SMD (SMT)
Case / Package 1008 (2520 Metric)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 023496-MLP2520S1R5MT0S1
Ultra Librarian 3D Model Ultra Librarian MLP2520S1R5MT0S1 CAD Model

Description

The TDK Corporation 023496-MLP2520S1R5MT0S1 is a multilayer inductor with a current rating of 1.2A and an inductance of 1.5µH.

  • Height: It has a height of 0.039" (1.00mm) when seated.
  • Mounting: and is mounted using SMD (SMT) technology.
  • Tolerance: Its tolerance is ±20%.
  • DC Resistance: and it has a DC resistance (DCR) of 117 mOhm Max.
  • Category: This inductor is categorized under Inductors, Coils, Chokes.
  • Status: and is active.
  • Operating Temperature: Its temperature range for operating is -40°C to 125°C.
  • Case/Package: and its case/package is 1008 (2520 Metric).
