Same model may have multiple batches, images only for reference.

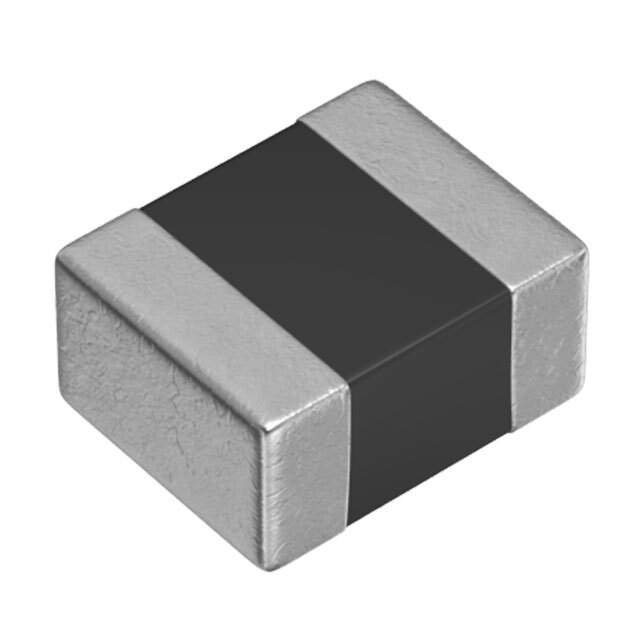

MLP2520H2R2ST0S1 Real Image
Same model may have multiple batches, images only for reference.

MLP2520H2R2ST0S1

Part No MLP2520H2R2ST0S1
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.5A 80 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel
Type Multilayer
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating (Amps) 1.5A
Shielding Shielded
DC Resistance (DCR) 104mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 2MHz
Mounting Style SMD
Manufacturer Package 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Parts Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Maximum) 0.047" (1.20mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 732692-MLP2520H2R2ST0S1
Popularity Low
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MLP2520H2R2ST0S1 CAD Model

Description

The TDK Corporation MLP2520H2R2ST0S1 Shielded Inductor is a high-quality electronic component designed for use in a variety of applications.

  • Feature: shielded multilayer type
  • Mounting: surface mountable, making it easy to install and use.
  • Supply and demand status: sufficient
  • Manufacturer Pack Quantity: 1
  • ECCN: EAR99
  • REACH: unaffected.
  • Description: known for its durability and reliability, making it a popular choice among engineers and designers.
