Same model may have multiple batches, images only for reference.

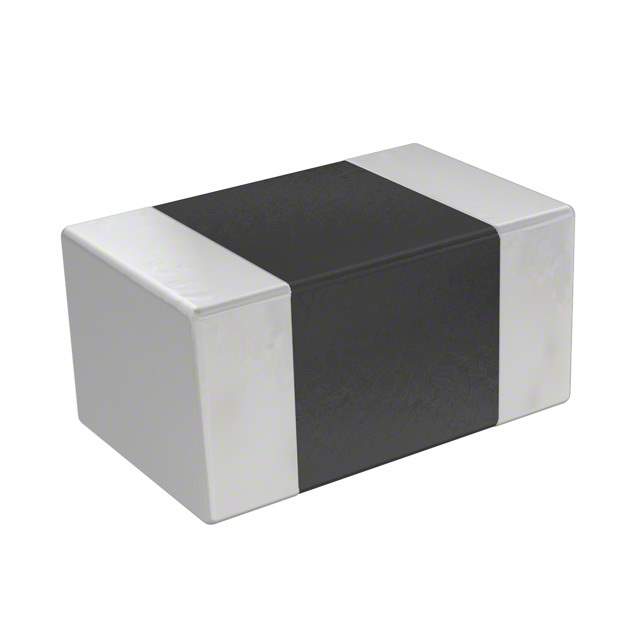

MLP2012V1R0TT0S1 Real Image
Same model may have multiple batches, images only for reference.

MLP2012V1R0TT0S1

Part No MLP2012V1R0TT0S1
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1UH 700MA 260 MOHM SMD / 1 µH Shielded Multilayer Inductor 700 mA 260mOhm 0805 (2012 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer TDK Corporation
Packaging Reel - TR
Product Status Obsolete
Type Multilayer
Material - Core Ferrite
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 700 mA
Shielding Shielded
DC Resistance (DCR) 260mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 2 MHz
Mounting Surface Mount
Case / Package 0805 (2012 Metric)
Supplier Device Package 0805 (2012 Metric)
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.022" (0.55mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number MLP2012V1R0TT0S1-ND,445-181442-6,445-181442-1INACTIVE,445-181442-6INACTIVE,445-181442-2,445-181442-1,445-181442-2-ND,445-181442-1-ND,445-15718-6,445-181442-6-ND,445-15718-2,445-15718-1,445-181442-2INACTIVE,MLP2012V1R0T
Standard Package 4,000
Win Source Part Number 1329896-MLP2012V1R0TT0S1
Ultra Librarian 3D Model Ultra Librarian MLP2012V1R0TT0S1 CAD Model

Description

The TDK Corporation MLP2012V1R0TT0S1 is a fixed inductor that is designed for use in electronic circuits.

  • Inductance: 1 µH
  • Maximum Current Rating: 700 mA
  • Shielded: Yes
  • Tolerance: ±20%
  • Mounting Type: Surface Mount
  • Package: 0805 (2012 Metric)
  • Maximum DC Resistance: 260mOhm
  • Height: 0.022 inches
  • Material: Ferrite
  • Temperature Range: -40°C to 125°C
  • Product Status: Obsolete (End of Life)
