Same model may have multiple batches, images only for reference.

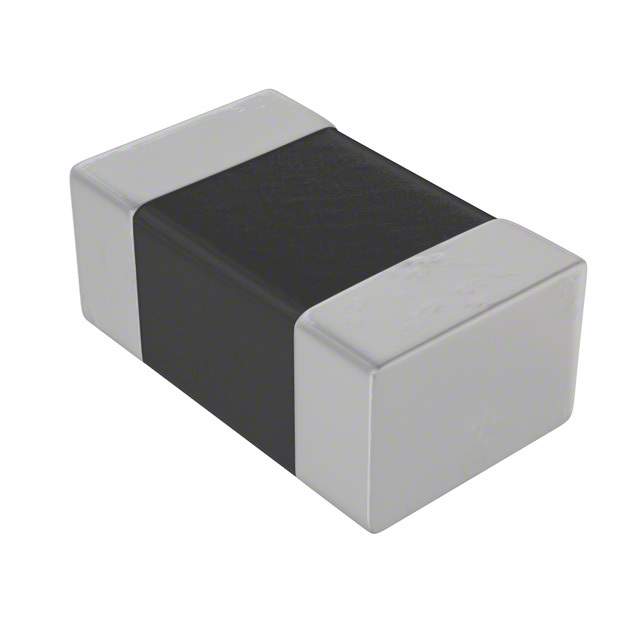

MLF2012A3R9JT000 Real Image
Same model may have multiple batches, images only for reference.

MLF2012A3R9JT000

Part No MLF2012A3R9JT000
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 3.9UH 30MA 650 MOHM
Datasheet
MLF2012A3R9JT000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Multilayer
Material - Core Ferrite
Inductance 3.9μH
Tolerance ±5%
Current Rating 30mA
DC Resistance (DCR) 650 mOhm Max
Q @ Freq 45 @ 10MHz
Frequency - Self Resonant 55MHz
Temperature Range - Operating -55°C to 125°C
Frequency - Test 10MHz
Mounting SMD (SMT)
Case / Package 0805 (2012 Metric)
Height - Seated (Max) 0.057" (1.45mm)
Win Source Part Number 1077737-MLF2012A3R9JT000
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MLF2012A3R9JT000 CAD Model

Description

The MLF2012A3R9JT000 is a multilayer inductor manufactured by TDK Corporation.

  • Win Source Part Number: 1077737
  • Height: 0.057" (1.45mm)
  • Mounting Type: Surface Mount
  • Current Rating: 30mA
  • Inductance: 3.9μH
  • Tolerance: ±5%
  • Core: Ferrite
  • Q @ Freq: 45 @ 10MHz
  • Frequency - Self-Resonant: 55MHz
  • Category: Inductors, coils, chokes
  • DC Resistance (DCR): 650 mOhm Max
  • Temperature Range: -55°C to 125°C
  • Case/Package: 0805 (2012 Metric)
  • Supply and demand status: sufficient
