Same model may have multiple batches, images only for reference.

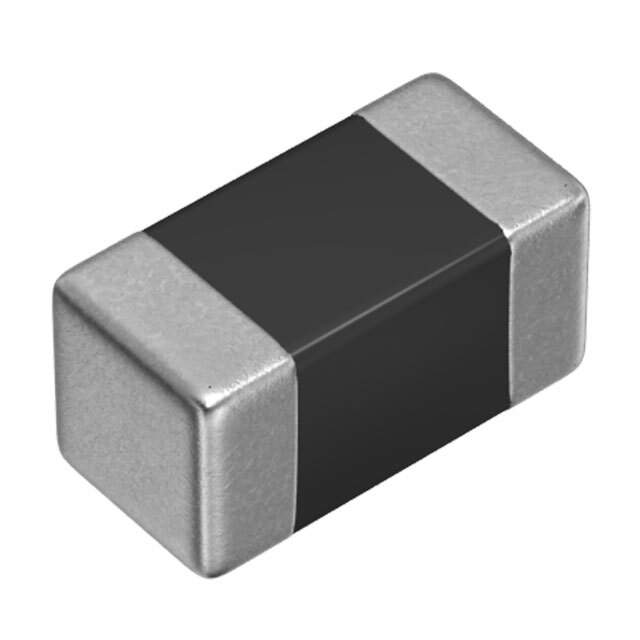

MLF1005LR39KT Real Image
Same model may have multiple batches, images only for reference.

MLF1005LR39KT

Part No MLF1005LR39KT
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 390NH 50MA 410MOHM SMD / 390 nH Shielded Multilayer Inductor 50 mA 410mOhm Max 0402 (1005 Metric)
Datasheet
MLF1005LR39KT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series MLF
Package Tape & Reel (TR)
Product Status Not For New Designs
Type Multilayer
Material - Core Ferrite
Inductance 390 nH
Tolerance ±10%
Current Rating (Amps) 50 mA
Shielding Shielded
DC Resistance (DCR) 410mOhm Max
Q @ Freq 25 @ 10MHz
Frequency - Self Resonant 210MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 10 MHz
Mounting SMD (SMT)
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402 (1005 Metric)
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.022" (0.55mm)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 10,000
Win Source Part Number 1120777-MLF1005LR39KT
Ultra Librarian 3D Model Ultra Librarian MLF1005LR39KT CAD Model

Description

The TDK Corporation 1120777-MLF1005LR39KT inductor is a fixed inductor with a multilayer type and a ferrite core material.

  • Inductance: 390 nH
  • Tolerance: ±10%
  • DC Resistance (DCR): 410mOhm Max
  • Operating Temperature: -40°C to 85°C
  • Height: 0.022 inches
  • Mounting: SMD (SMT)
  • Packaging: Tape & Reel (TR)
  • Package Quantity: 10,000 pcs
  • Q @ Freq: 25 @ 10MHz
  • Frequency - Self-Resonant: 210MHz
